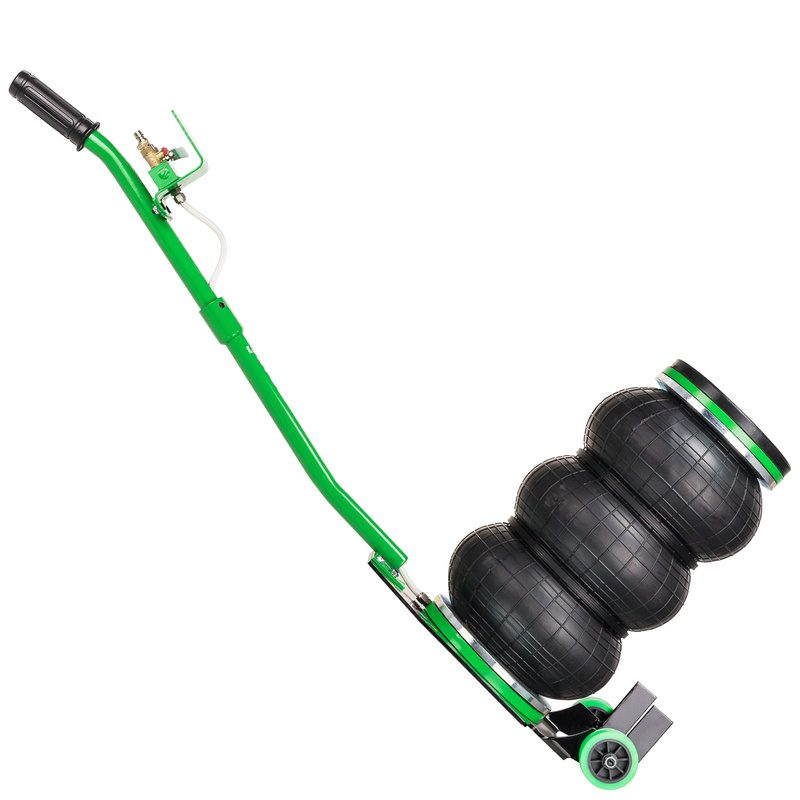

Pneumatic Air Bag Jack AP-3500

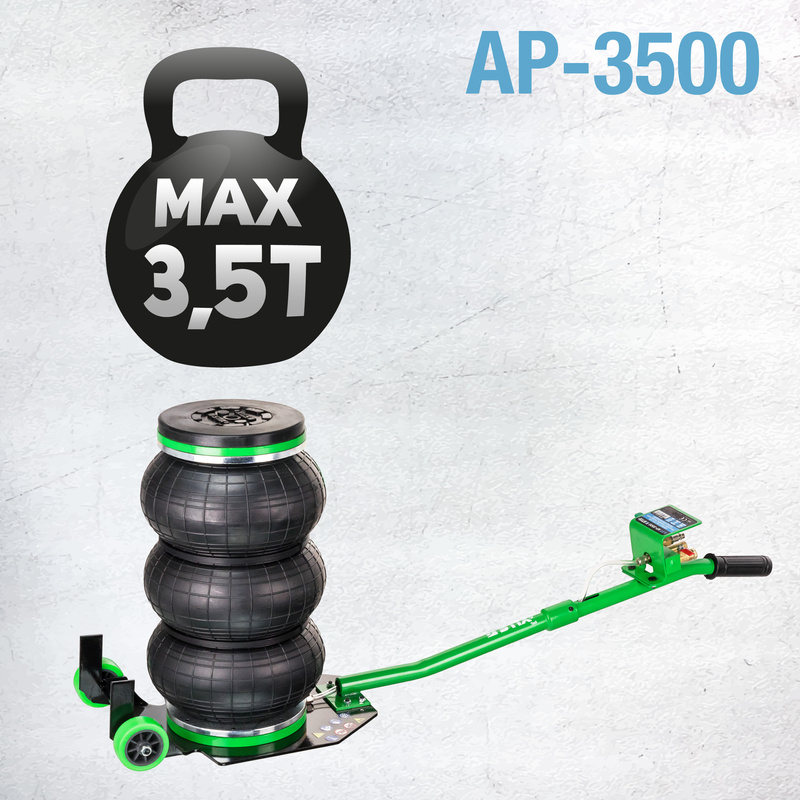

3.5-ton lifting capacity

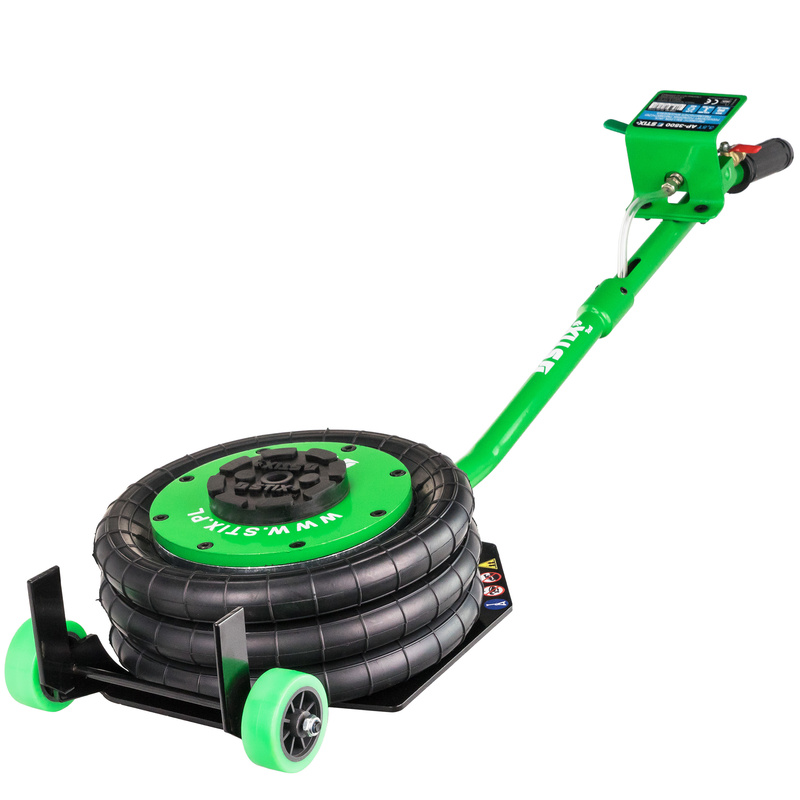

The AP-3500 pneumatic air bag jack is designed for lifting vehicles with a weight of up to 3.5 tons at designated lifting points. It was developed with tire service shops and automotive workshops in mind. The jack is an ideal tool whenever a vehicle needs to be lifted quickly for wheel removal or service work.

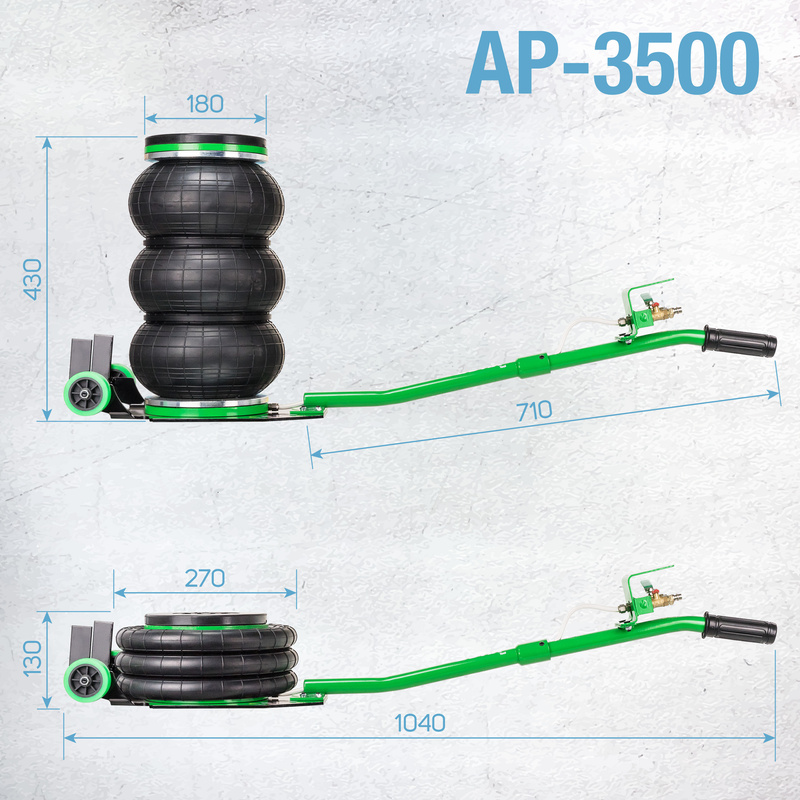

Lifting height – 43 cm

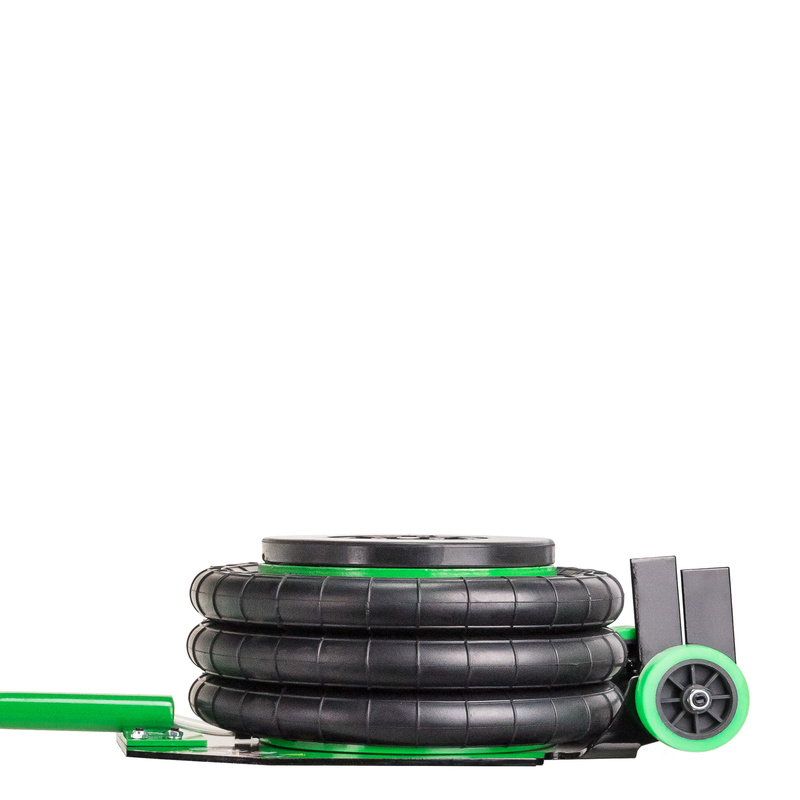

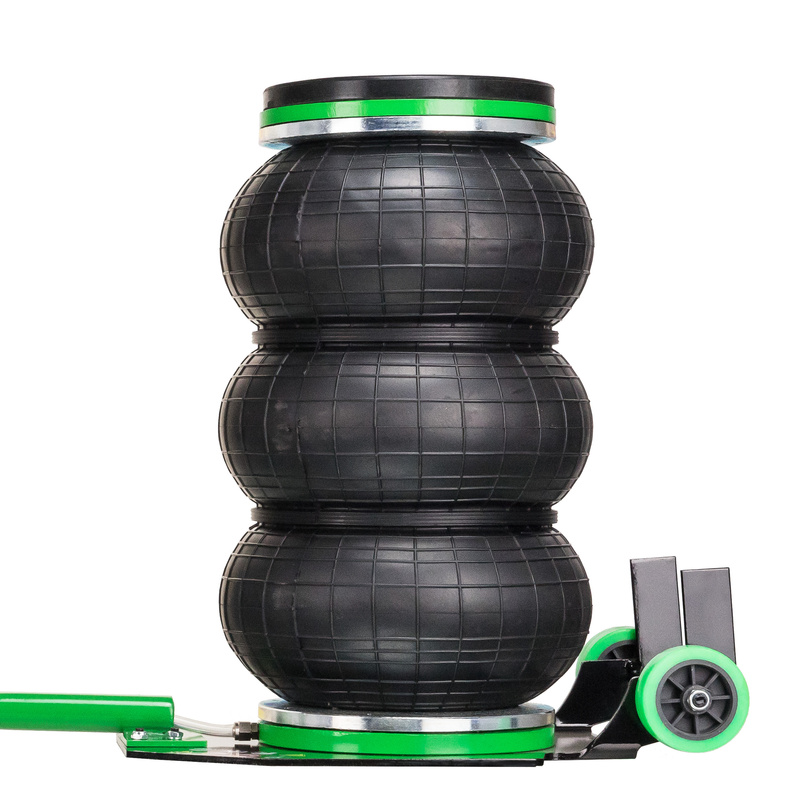

The maximum lifting height of the AP-3500 air bag jack when fully inflated is 43 cm. In its resting position the jack measures only 13 cm in height, allowing it to be easily positioned under the chassis of most standard passenger vehicles.

Additional protective rubber pad

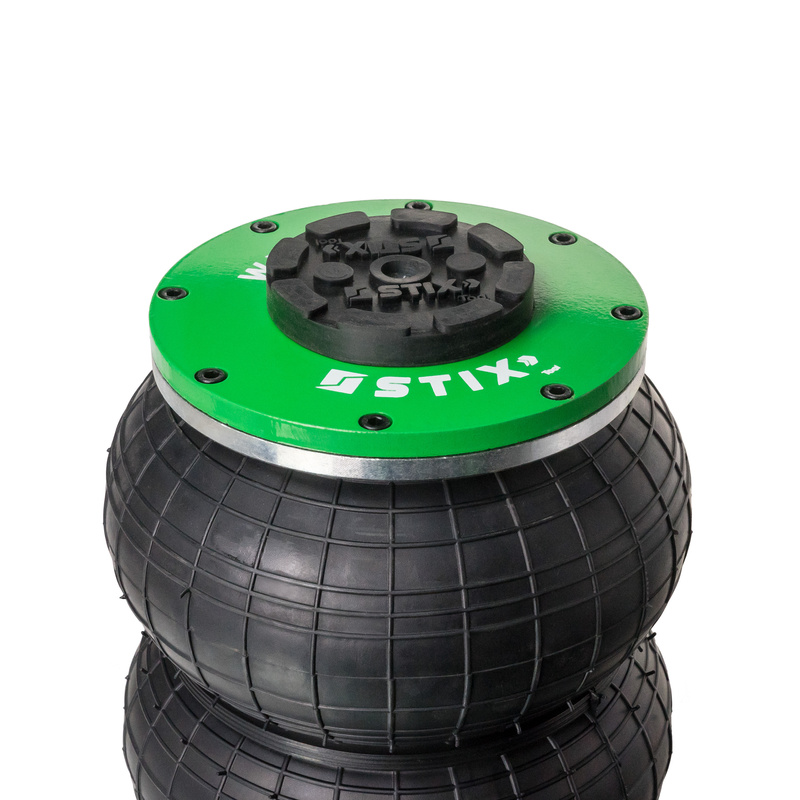

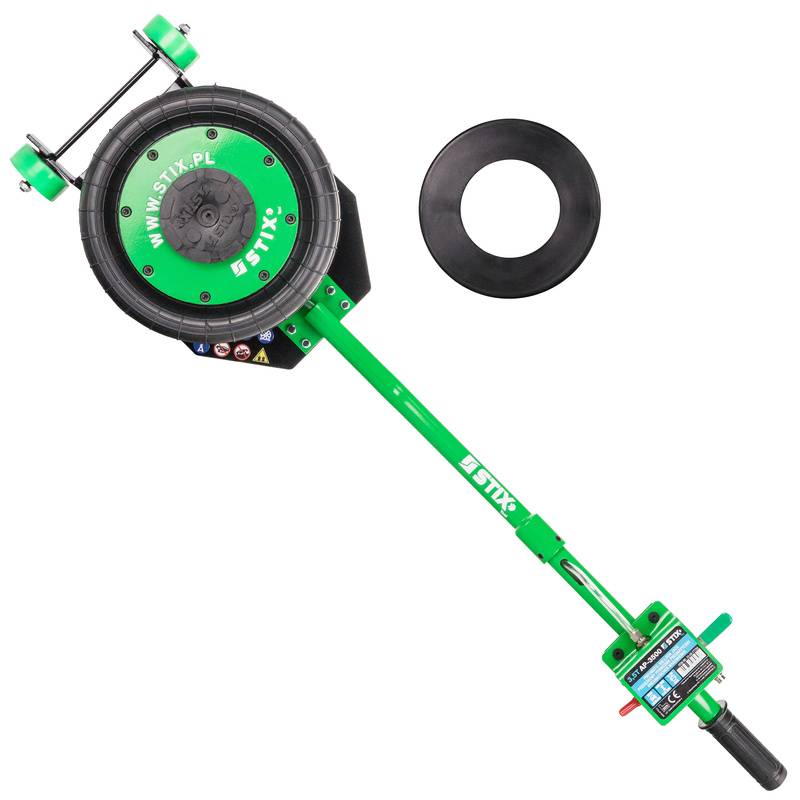

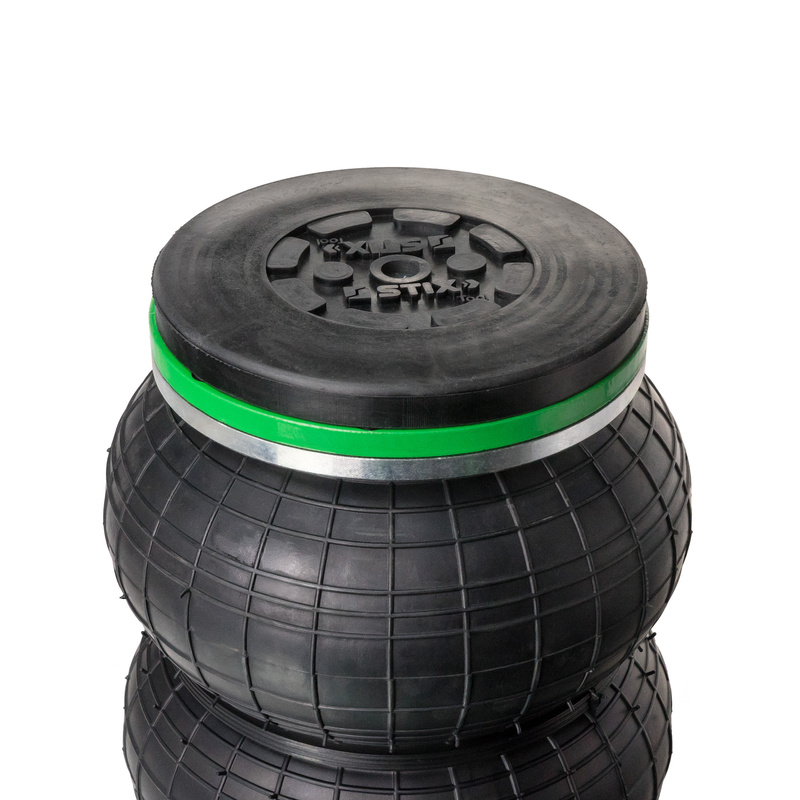

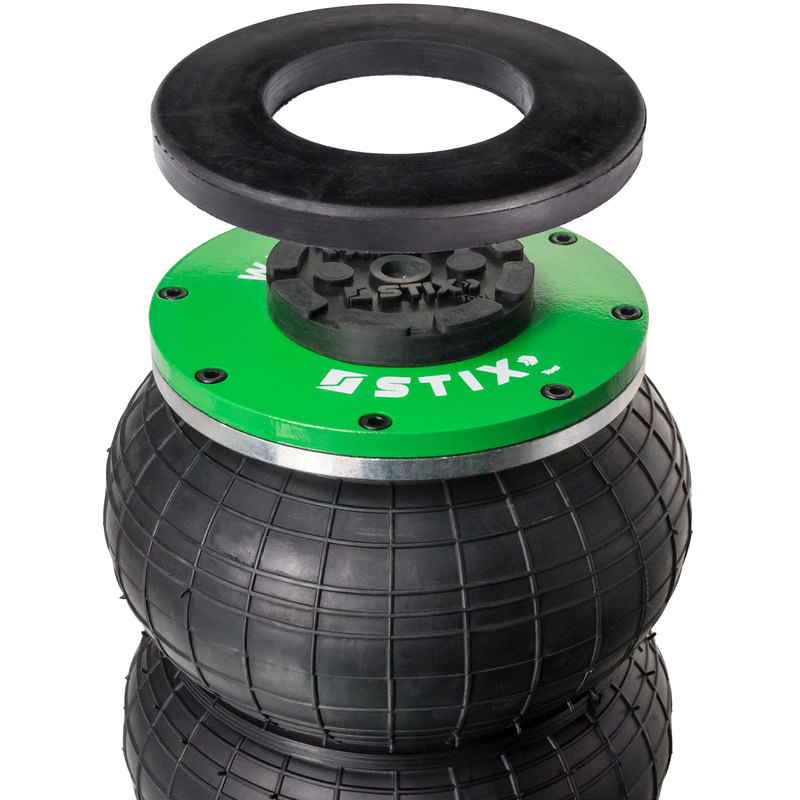

In addition to the standard bolted rubber lifting pad, the jack is supplied with an extra protective rubber pad. The 180 mm diameter pad completely covers the upper plate surface. This effectively protects the lifted vehicle from scratches that may occur while positioning the jack under the lifting point, and also provides additional protection if the vehicle accidentally slips off the standard lifting pad.

5-section telescopic stabilizer and reinforced air bags

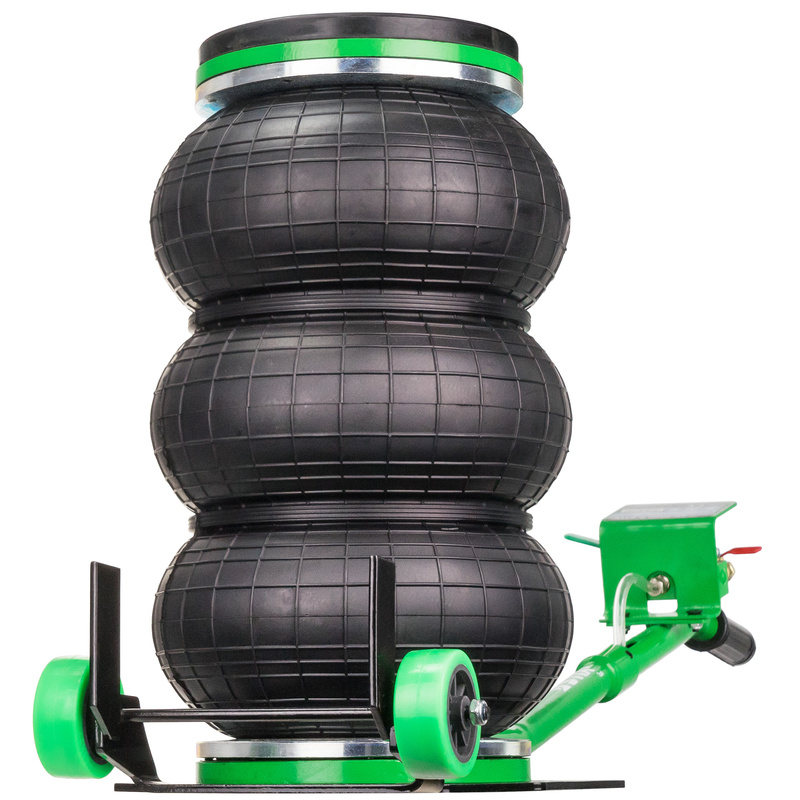

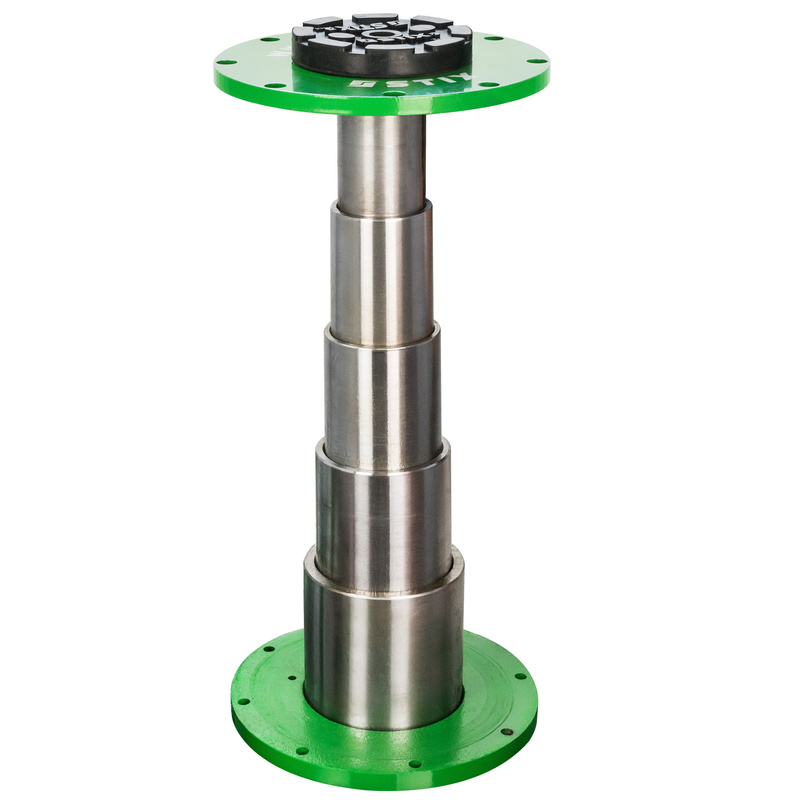

Inside the rubber air bags there is a solid metal telescopic stabilizer that keeps the jack stable during lifting. In this model the telescopic stabilizer consists of five sections, unlike many commonly available air bag jacks on the market that use three-section telescopes. Additionally, steel reinforcing rings are installed at the joints of the air bags to increase structural rigidity and durability.

Comfortable operation

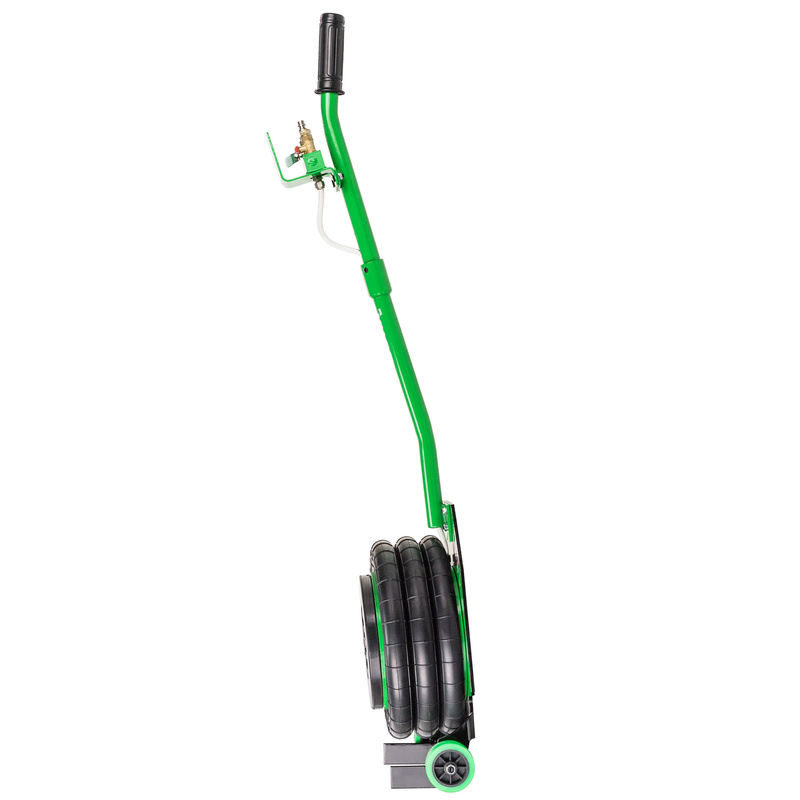

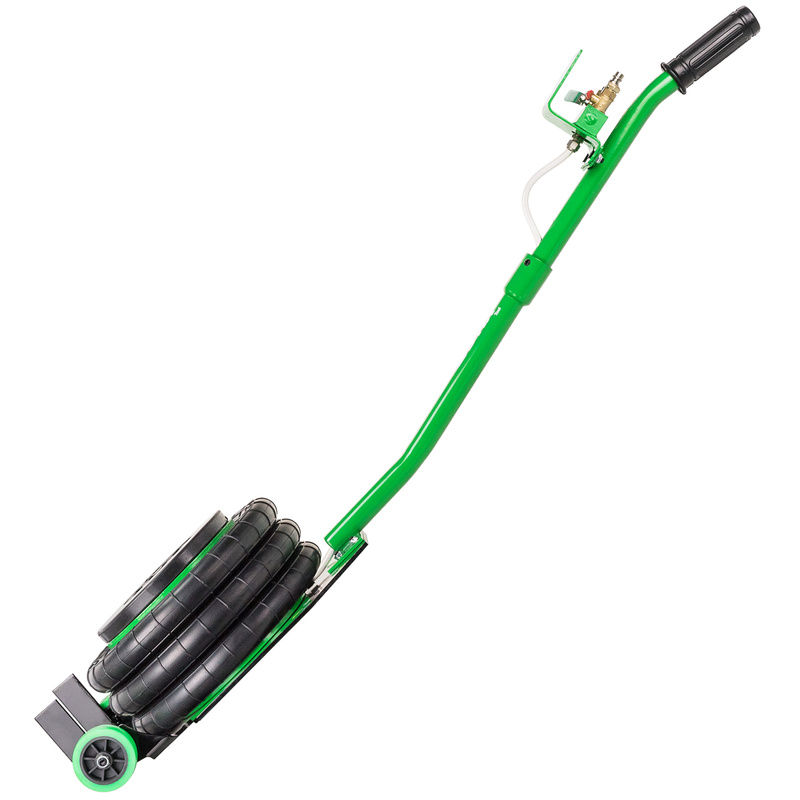

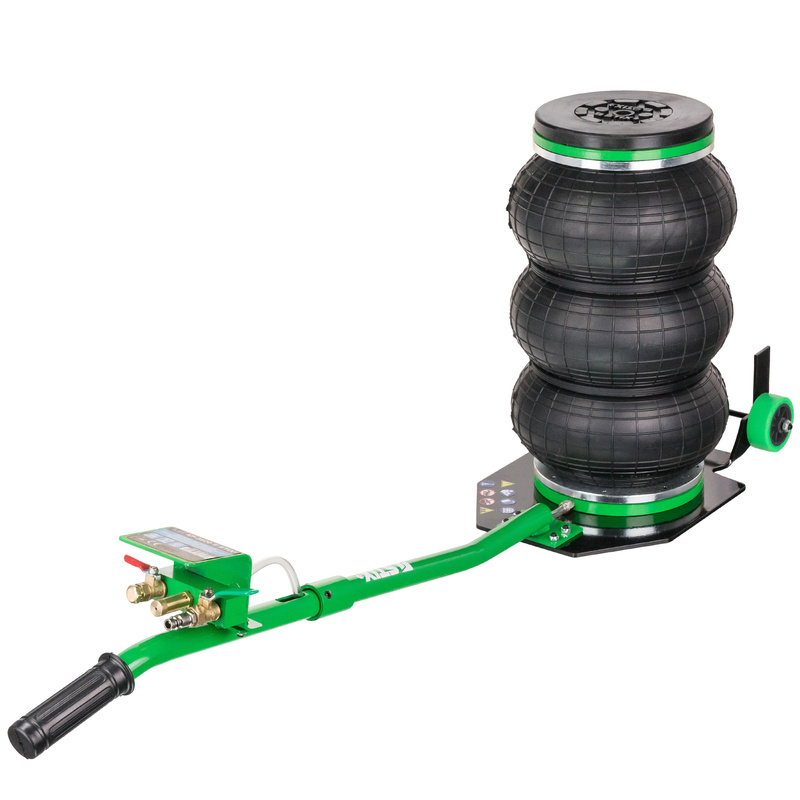

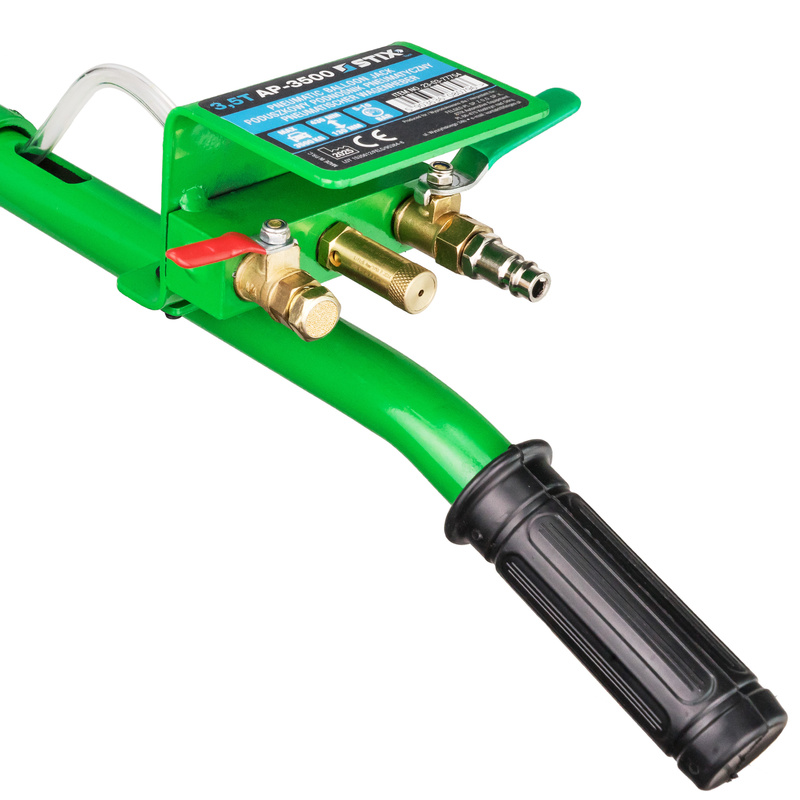

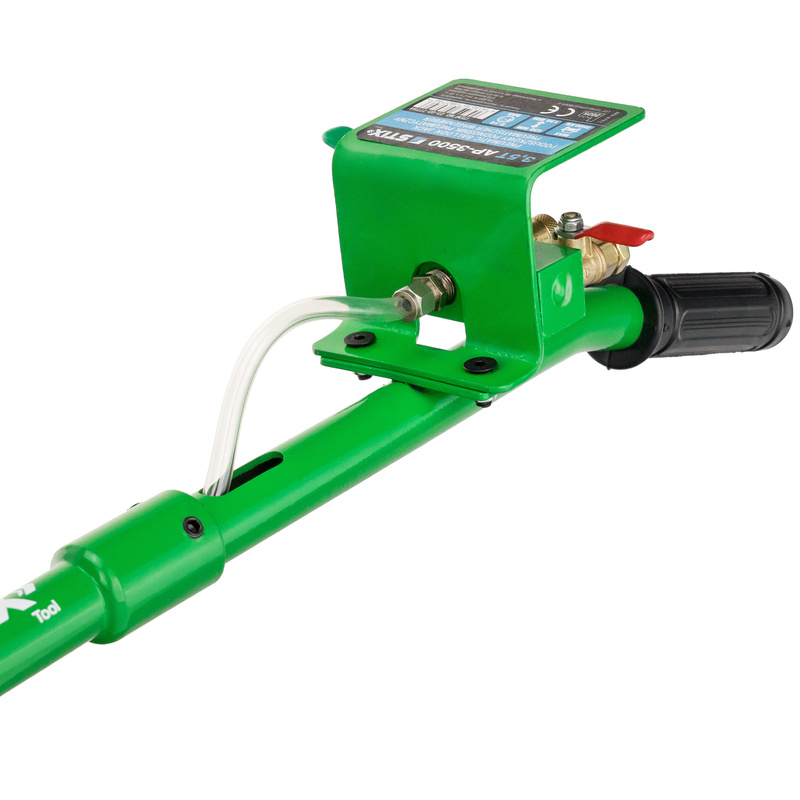

The jack is equipped with a 71 cm handle that makes it easy to maneuver and accurately position the jack under the vehicle. The ergonomic ribbed rubber grip ensures a secure hold, while the control panel with valves located just below the handle allows convenient control of the air supply and release. The base of the jack is equipped with supports that allow the air bag jack to be positioned vertically after use.

2 plastic wheels Ø60

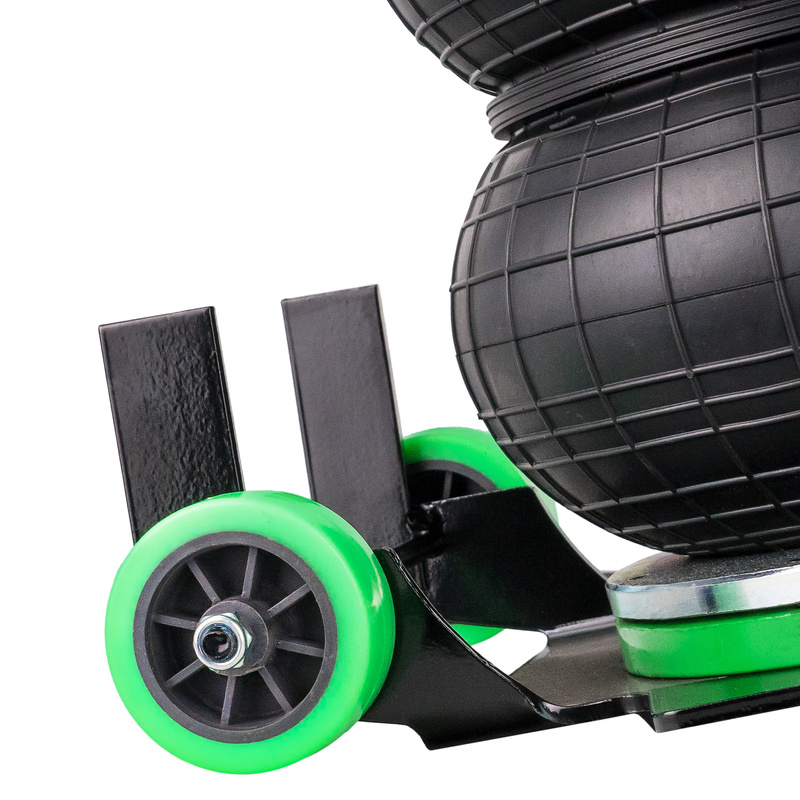

Positioning the air bag jack under the vehicle is also made easier by two Ø60 wheels made of high-quality plastic. The material is non-marking and does not scratch surfaces, while still providing good grip and smooth movement.

EU Safety Valve

The jack is equipped with an EU Safety Valve, compliant with European safety standards (EN ISO 4126-1:2013/A2:2019). The valve automatically controls the maximum pressure inside the pneumatic air bags. If the permitted pressure is exceeded, the valve releases excess air, protecting the jack from overload and increasing operational safety.

Air supply 5–10 bar

The jack is powered by compressed air with a working pressure of 5 to 10 bar and is equipped with a standard European-type pneumatic quick coupling, allowing easy connection to typical compressed air systems used in workshops.

Easy operation

Operating the jack is very simple. It is controlled by two ball valves with convenient levers. Color-coded handles clearly indicate their function: the green lever is used for lifting, while the red lever controls lowering through the exhaust valve.

Robust construction

The durable steel construction ensures long and reliable service even under intensive workshop use. The jack is manufactured in accordance with occupational safety requirements and is supplied with a CE Declaration of Conformity. Key construction advantages include:

• 5-section metal telescopic stabilizer for improved stability during lifting
• Three-layer rubber air bags with a diameter of 270 mm, made from a durable rubber compound
• EU Safety Valve compliant with European safety standards
• Jack base made of 4.5 mm thick steel plate
• Corrosion protection (powder coating)
• 71 cm handle for easy positioning
• Anti-slip ribbed rubber grip
