CUB TPMS UNI Sensor 4.0 EVO E-type Pressure Sensor - Snap-In rubber

Universal TPMS Sensor Uni-Sensor 4.0 EVO Type E / rubber Snap-in

New generation Uni-Sensor EVO-E

The Uni-Sensor 4.0 EVO Type E is the latest generation of the popular Uni-Sensor TPMS series, combining key features of previous models (dual-frequency support, optimized power management, long battery life) with reduced weight and size. Supplied with a rubber Snap-in valve (TPMS-11).

Wireless programming

The new Uni-Sensor EVO-E is programmed exclusively wirelessly, offering convenient communication with TPMS sensors via all CUB Sensor AID programmers:

• Sensor-AID Pro
• Sensor-AID Pro 3.0
• Sensor-AID Truck
• Sensor-AID 4.0
• Sensor-AID 4.0 EVO

Lightweight and compact design

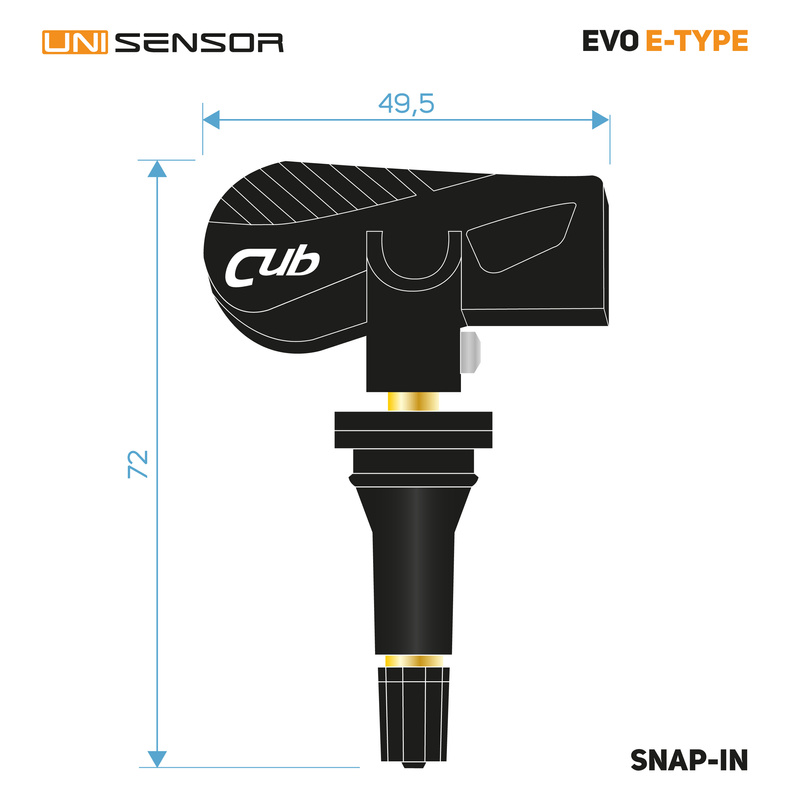

Eliminating wired contacts allowed reduction of sensor weight and dimensions. The sensor weighs only approximately 15 grams, facilitating easier wheel balancing.

Dual frequency ranges

The sensor supports dual frequencies – 433 MHz (Europe) and 315 MHz (USA).

Replaceable aluminium valve

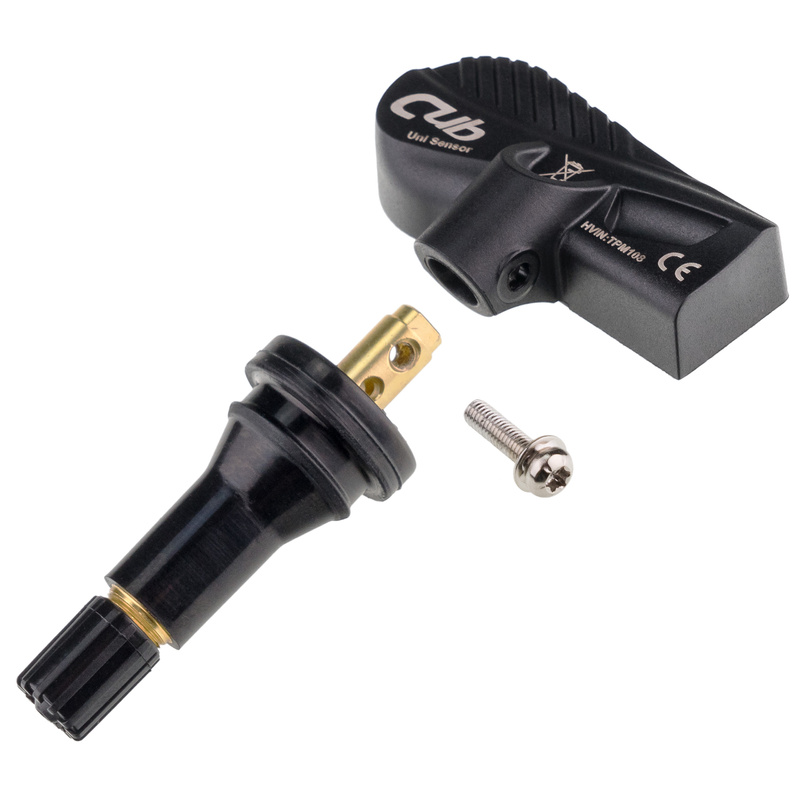

The valve is not permanently attached to the sensor and can be easily removed and replaced. The sensor comes with a rubber Snap-in TPMS-11 valve. With standardised mounting, it can be swapped for a Clamp-in TPMS-17 aluminium valve if needed.

One sensor for all vehicles

All Uni-Sensor series sensors are universal, activatable and programmable for almost all vehicles on the European market with direct TPMS, and also compatible with American market vehicles at 315 MHz. Sensor status can be checked using any TPMS diagnostic device.

Replacement or duplicate

Uni-Sensor EVO-E sensors can replace faulty or non-functioning OE sensors without reprogramming the vehicle computer. They can also be used in a second wheel set, functioning like original sensors and programmable as replacements with a different ID, or as a duplicate using the same ID.

Uni-Sensor advantages

• ncompact size and low weight (~15 g),
• long-life battery (up to 7 years),
• activates only after programming and activation,
• supports 433 MHz (EU) and 315 MHz (US),
• programmable as replacement or duplicate,
• up to 100,000 reprograms,
• wireless programming only,
• rim mounting via aluminium or rubber valve,
• easy valve replacement,
• IC and ISO 9000 production standards.

Reliable and cost-effective TPMS solution

Uni-Sensor sensors are a perfect replacement for original TPMS. Functionally equivalent to OE sensors but more affordable, and can be reprogrammed if needed. Compatible with most rims according to manufacturer fitment lists.
