WR-01 Mechanical Wheel Dolly – 1 pc – Stix

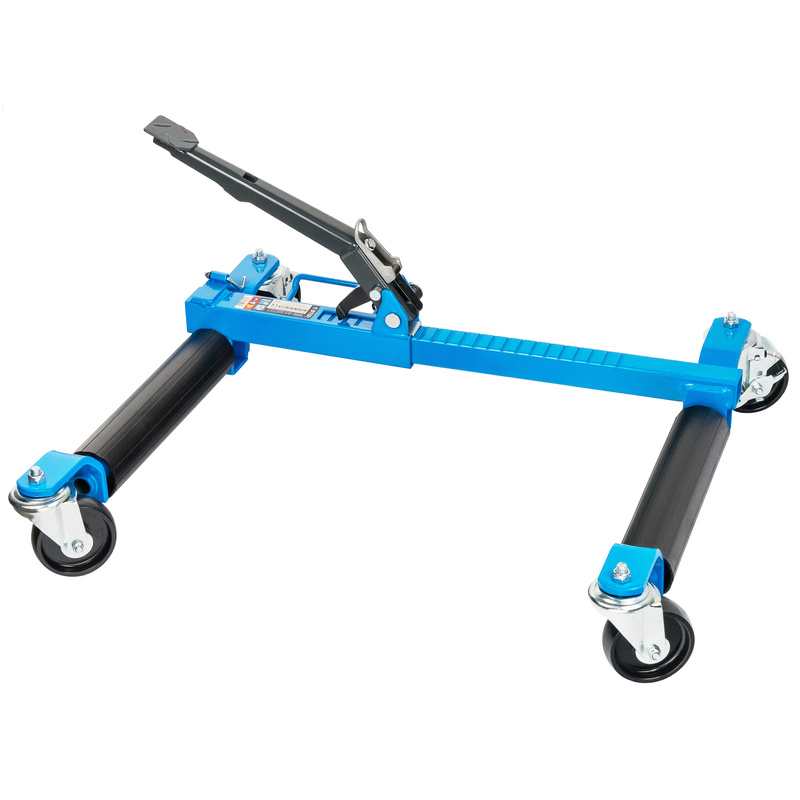

Mechanical Wheel Dolly WR-01 / 1 pc
Efficient vehicle maneuvering

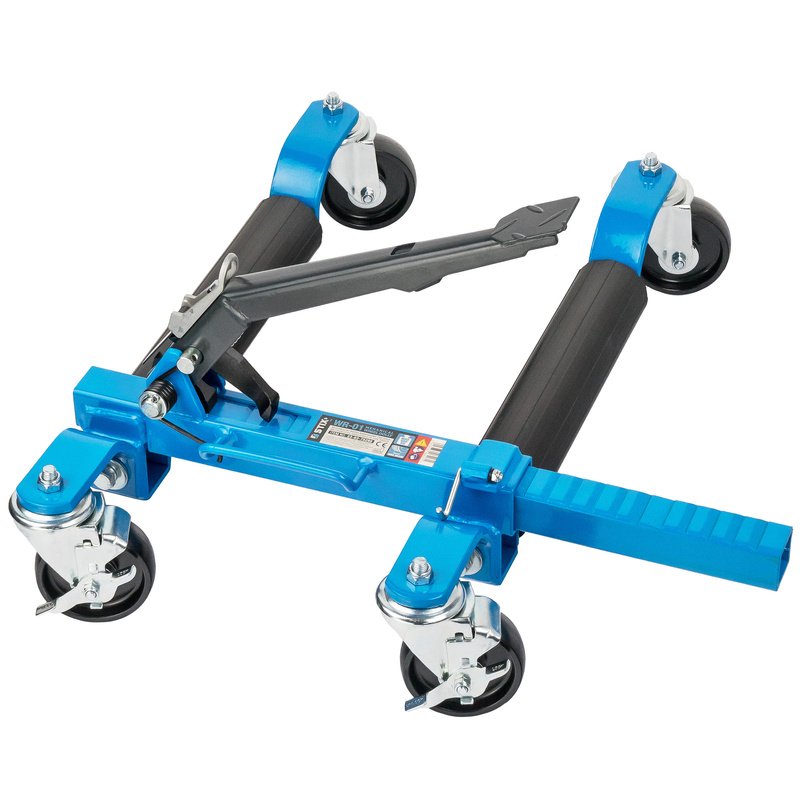

The WR-01 is a mechanical wheel dolly designed for convenient vehicle movement in tight workshop, garage, or showroom spaces. It is ideal for handling vehicles with immobilized drivetrains or for precise positioning on service bays. The mechanical lifting system ensures simplicity and reliability in everyday use.
Applications:
- Moving vehicles in confined areas
- Handling cars with damaged drivetrains
- Positioning vehicles in showrooms, exhibitions, and museums
- Optimizing space in private garages

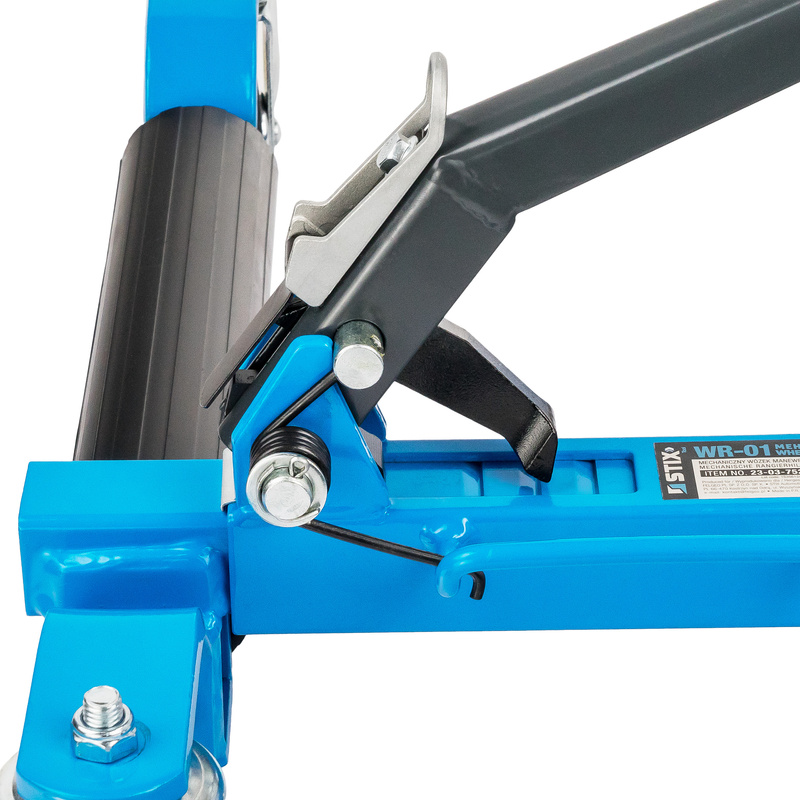

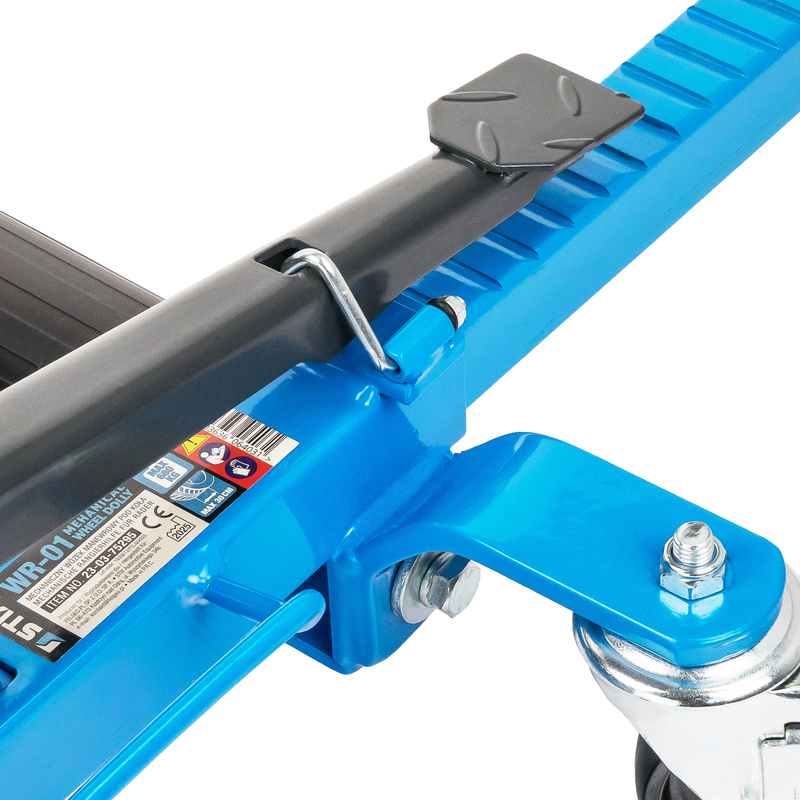

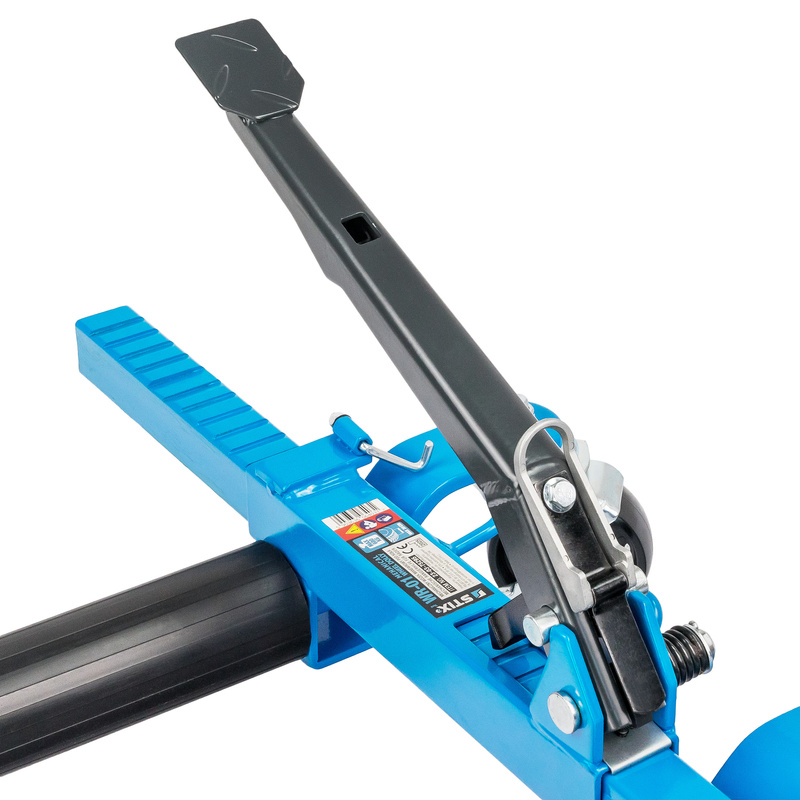

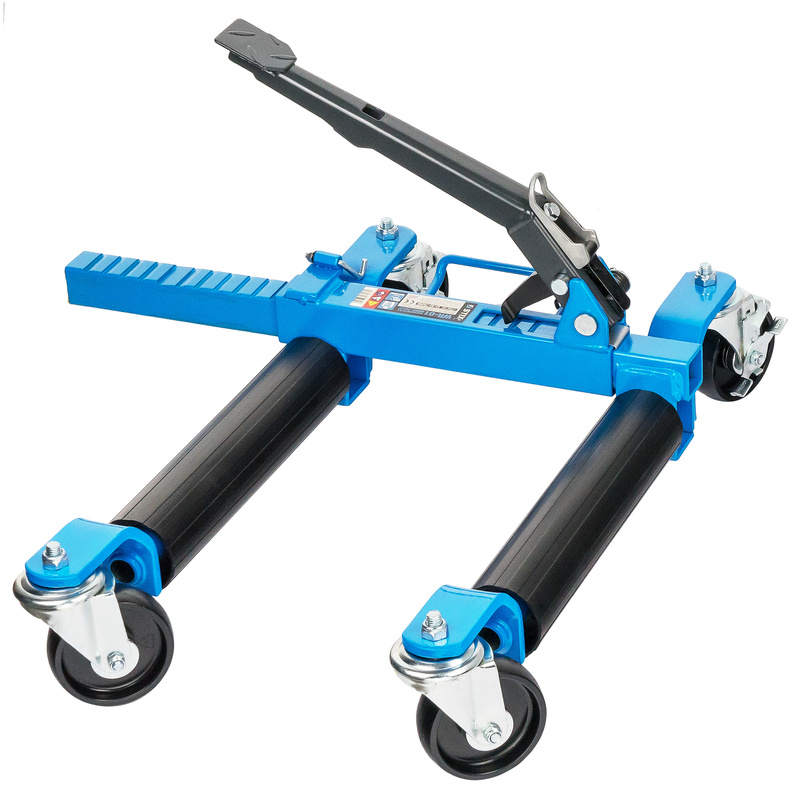

Ratchet mechanism – lifting via foot pedal

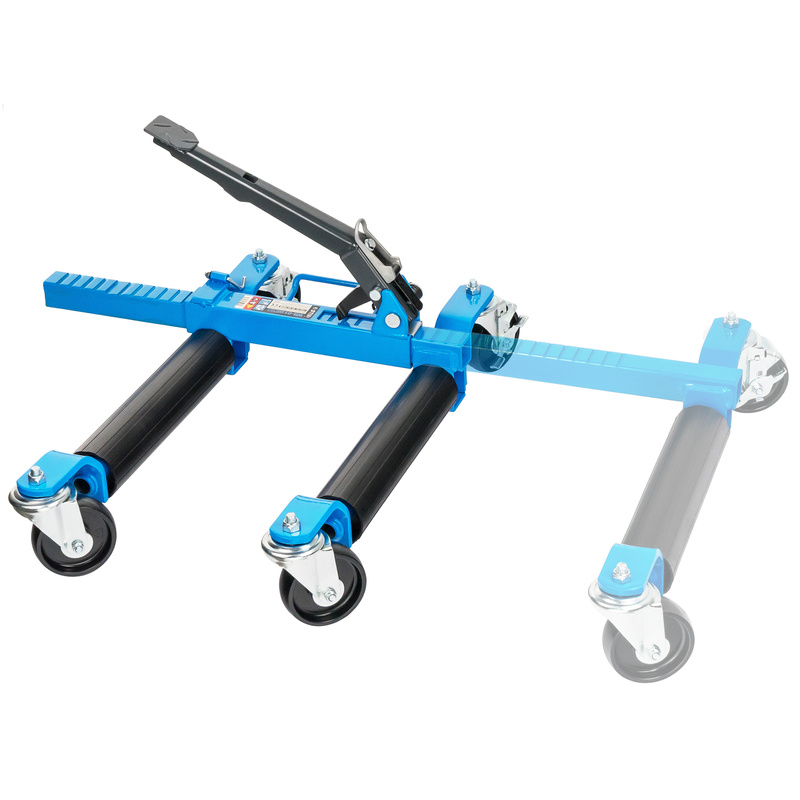

The dolly is equipped with a ratchet mechanism operated by a foot pedal – just press the pedal several times to gradually bring the arms together and lift the vehicle's wheel. The lifting process is fully mechanical, without hydraulic components, simplifying the structure and enhancing durability.

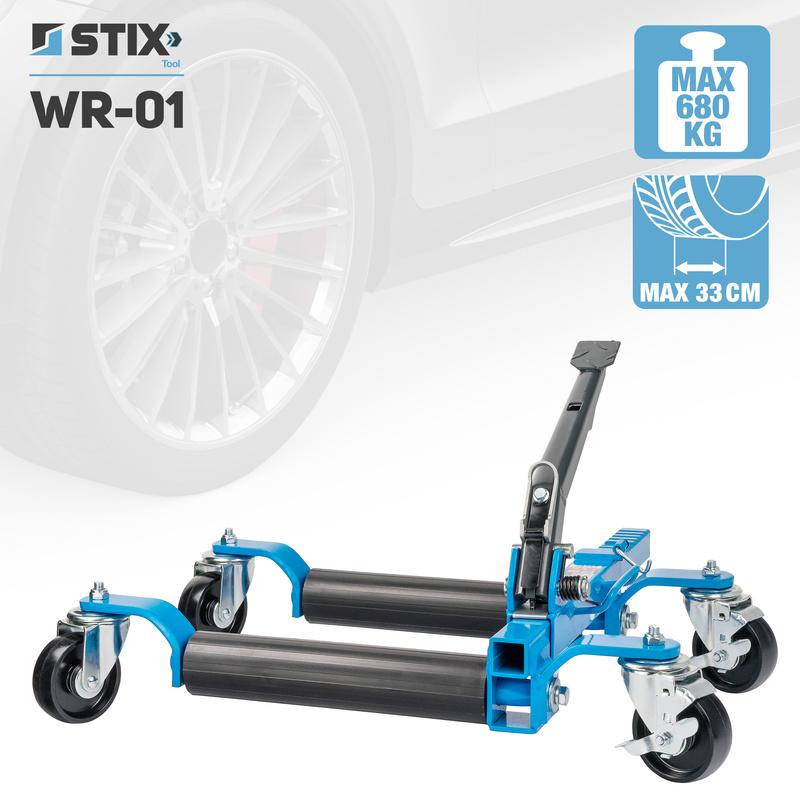

Load capacity – 680 kg
One WR-01 dolly is designed to support a single wheel of up to 680 kg. For full vehicle movement, four dollies are recommended (total vehicle weight up to 2720 kg). Alternatively, two dollies can be used under the drive wheels only.

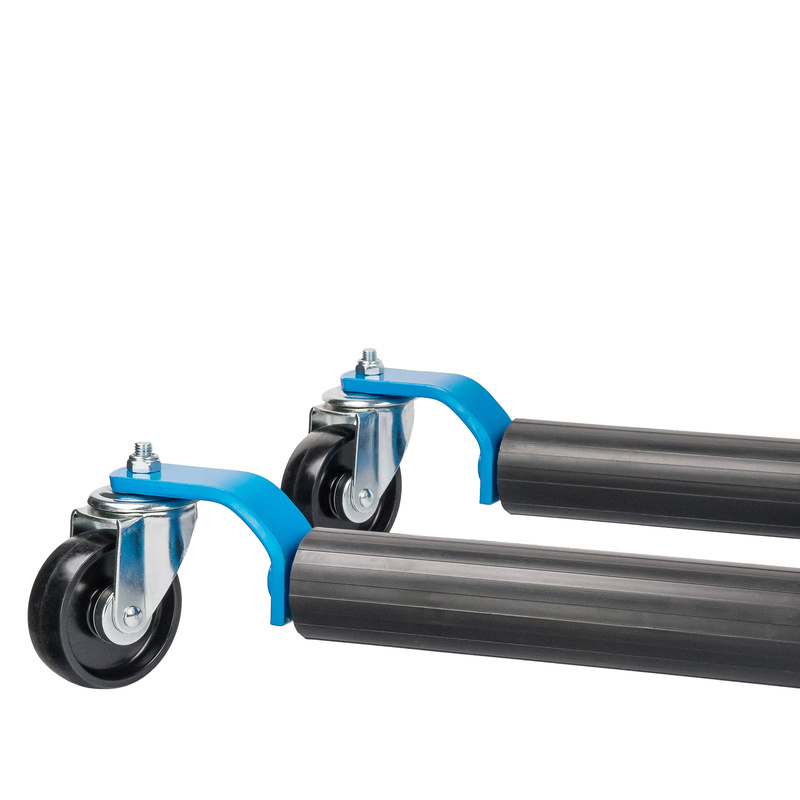

Long rollers – supports wide tires

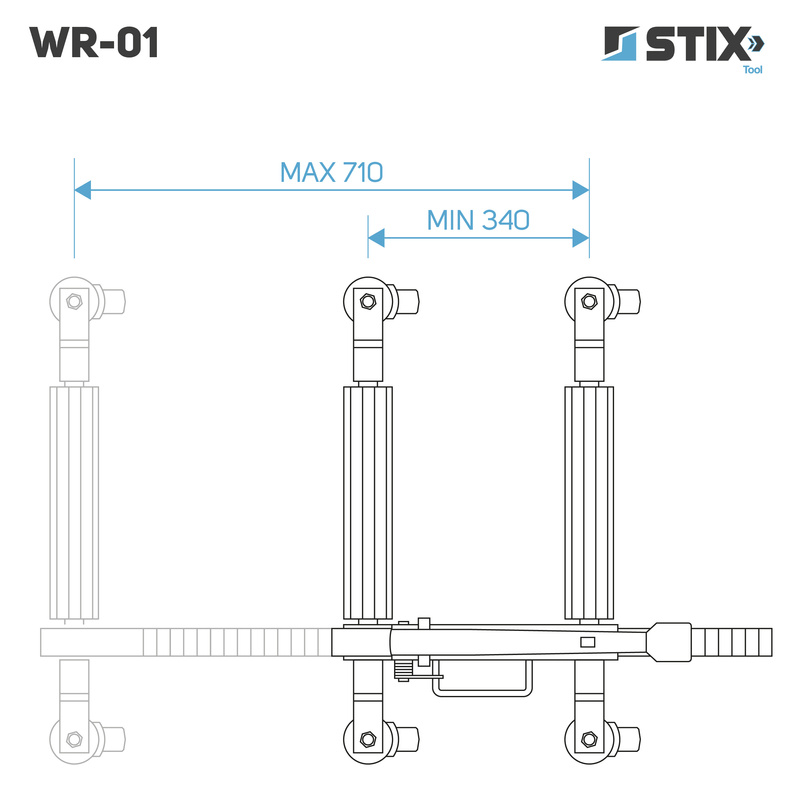

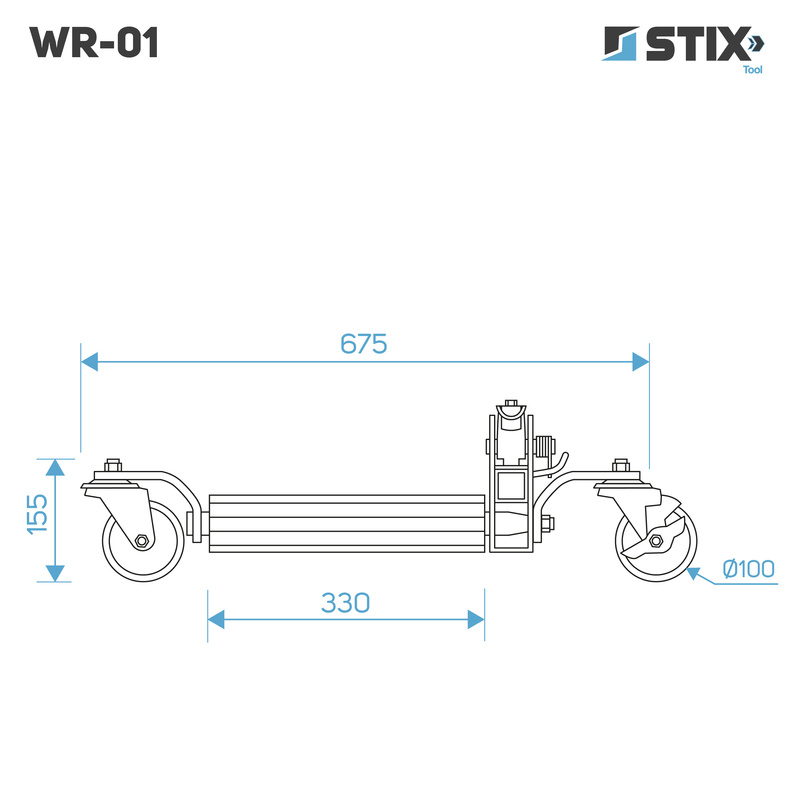

The arms feature durable plastic rollers, each 33 cm long. They accommodate tires up to 330 mm wide and with an outer diameter from 450 to 810 mm. The rollers protect the tire and allow smooth lifting.

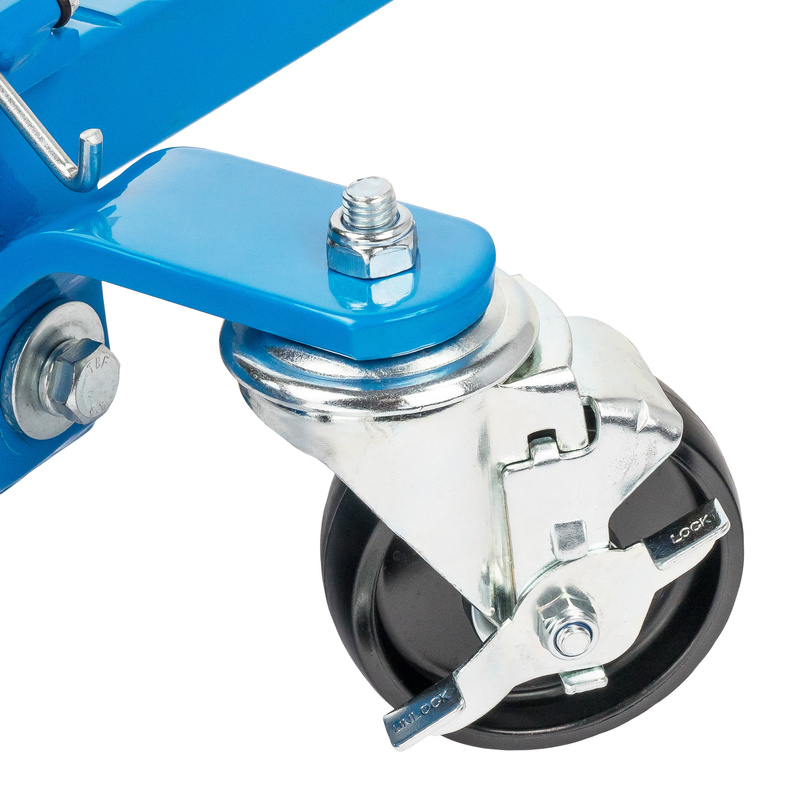

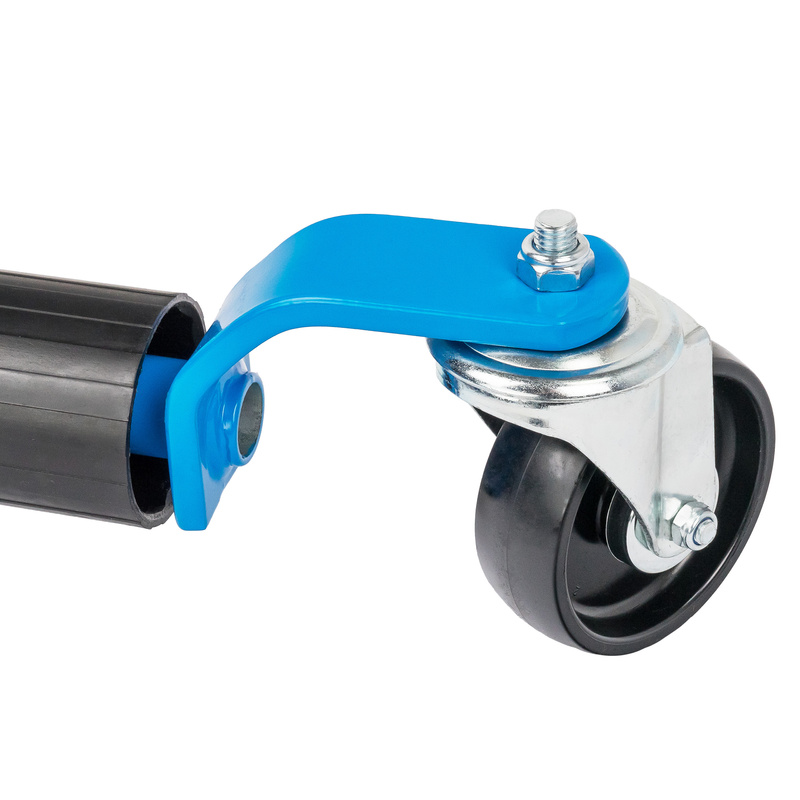

Stable mobility – swivel casters with brakes

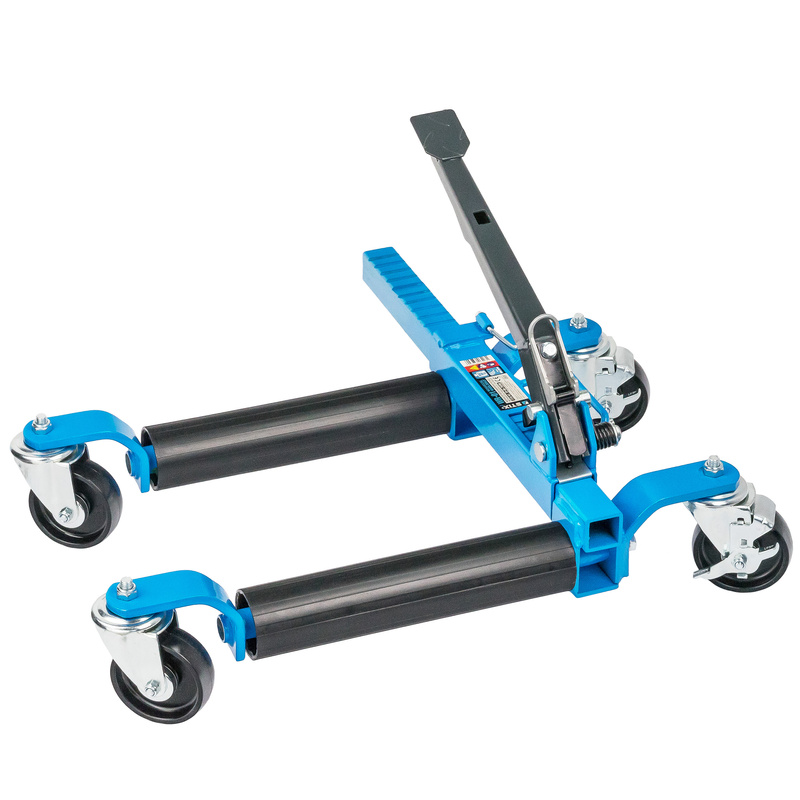

The WR-01 is fitted with four swivel casters, two of which are equipped with brakes to stabilize the dolly during lifting and movement. This configuration ensures maneuverability and safety, even in limited workspaces.

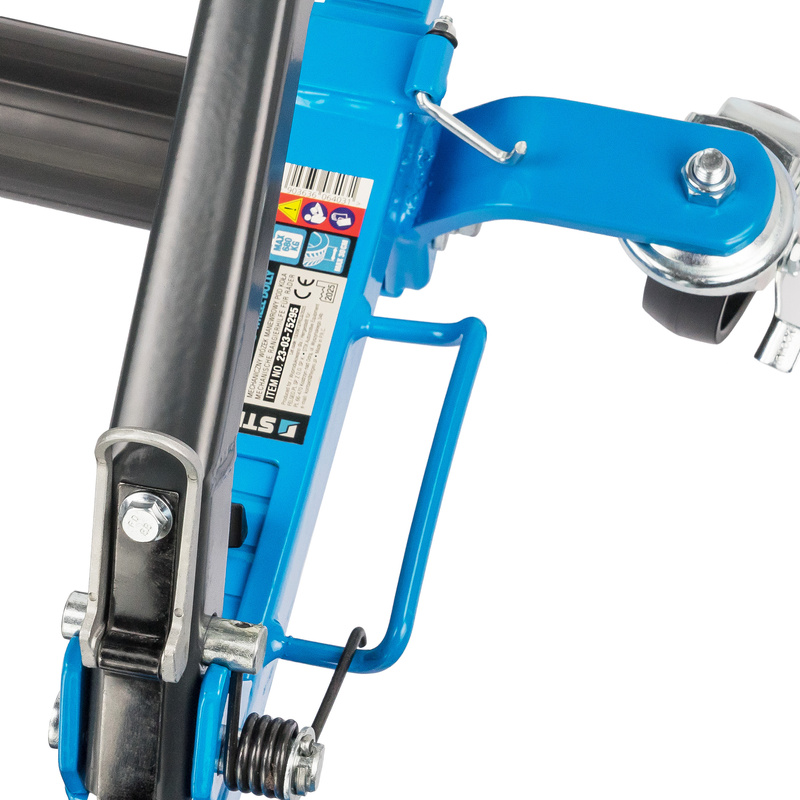

Ergonomic side handle
The dolly includes a sturdy side handle welded to the frame, allowing safe vehicle movement and convenient transportation of the dolly itself.
Durable steel construction
The frame is made of strong steel components, bolted and welded for maximum rigidity and durability. Before first use, simply attach the arms and wheels – installation requires no specialized tools, just a size 19 wrench.
