| Height: | 53 mm |
| Hole in rim: | ?11,3mm (+0,4mm) |
| Height from rim: | 38 mm |
| Valve head diameter: | 17 mm |
| Colour: | black |
| Tightening torque: | 4 Nm |

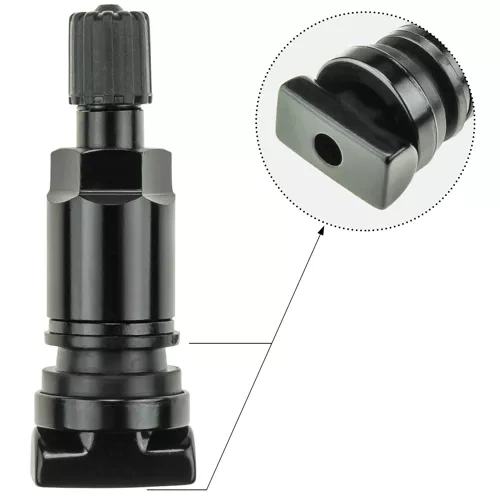

Valve - repair kit TPMS-14b for Schrader Gen Gamma pressure sensors
TPMS-14b is a bolt-on aluminium valve for Schrader Gen Gamma brand TPMS sensors. It is an ideal replacement for the original factory fitted valves for TPMS systems. It fits all types of alloy wheels with an 11.3mm diameter hole for valve mounting.
Thanks to their lightweight aluminium construction based on bolted components, the TPMS-14b valves have very good resistance to high centrifugal forces. They maintain a high tightness and ensure that the correct pressure is maintained in the wheel.
The components of the TPMS-14b valves are constructed from materials with specially selected quality parameters. This guarantees a long and trouble-free operation of the valves regardless of the weather and terrain conditions during driving.
The TPMS-14b valve consists of the following parts:
- aluminium body,
- rubber gasket,
- 2 plastic washers,
- plastic cap,
- spring insert,
- contoured valve stem.
Application of valve TPMS-14b
The TPMS-14b valve is designed for use with Schrader brand Gen Gamma TPMS pressure sensors found in cars:
- LEXUS: NX (10/2021-06/2023), RZ (07/2022-06/2023)
- ALFA ROMEO: 4C (01/2013-06/2018), 5 (02/2017-06/2018), 7 (01/2016-06/2018)
- ASTON MARTIN: DB11 (06/2016-06/2018)
- BMW: 5 SERIES (02/2017-06/2018), 6 SERIES GT (11/2017-12/2018), 7 SERIES (06/2015-06/2018), X3 (08/2017-06/2018)
- CHEVROLET: CORVETTE (01/2014-06/2018)
- CITROEN: JUMPER/RELAY(VAN) (06/2014-06/2018), FIAT DUCATO (06/2014-06/2018)
- INFINITI: Q30 (12/2015-06/2018), QX30 (06/2016-06/2018)
- MASERATI: GHIBLI (11/2013-06/2018), LEVANTE (05/2016-06/2018), QUATTROPORTE (01/2013-06/2018)
- MERCEDES-BENZ: A-CLASS (01/2014-06/2018), B-CLASS (01/2014-06/2018), AMG GT/GT-S (03/2015-06/2018), C-CLASS (01/2008-06/2018), CLA (01/2014-06/2018), E-CLASS (W213) (04/2016-06/2018), GLA (06/2014-06/2018), GLC (01/2015-06/2018), GLE (09/2015-06/2018), GLK-CLASS (01/2008-09/2015)
- OPEL: ADAM S & ROCKS S (07/2014-06/2018), ASTRA J (06/2014-12/2017), CASCADA (06/2014-06/2018), CORSA D (01/2006-10/2014), CORSA E 1.4, TURBO/OPC (11/2014-06/2018), INSIGNIA A (05/2014-05/2017), ZAFIRA B (06/2014-12/2014), ZAFIRA C (06/2014-06/2018)
- PEUGEOT: BOXER (06/2014-06/2018)
