Manufacturer: | STIX Tool |
Model: | STT-17 |
Maximum torque: | 1700 Nm |
plug for quick connector: | yes, 1/4" |
Operating torque: | 70-1060 Nm |
Pin size: | 1/2" |
Impact mechanism: | Twin Hammer |
Rotational speed: | 7500 rpm |
Operating pressure: | 6,3 bar |
Air consumption: | 170 l/min |
Mass: | 2,1 kg |
Air inlet: | 1/4" |
Vibration: | 6,85 m/s2 |
Noise level: | 89 dB(A) |
Product conformity: | Machine Directive 2006/42/EC |
Tool case and accessories: | yes |
Pass-through oiler | |
Air connection: | 1/4" |
Air flow: | 550 l/min |
In a set
- Composite air pneumatic impact wrench 1700Nm STIX STT-17 1/2"51,17 EUR / piece
- Case for 1/2 Pneumatic Impact Wrench - Stix11,45 EUR / piece
STT-17 1/2" 1700 Nm pneumatic impact wrench with carrying case and oiler
Ideal for the workshop
STT-17 is a 1/2" pneumatic wrench by STIX Tool powered by compressed air at 6.3 bar. It is designed for screwing/unscrewing screws and nuts during various types of workshop work. It will be perfect for automotive service shops, for example, serving for the assembly/disassembly of wheels of cars and vans.
Twin hammer - instant power
The wrench is equipped with a solution known as "twin hammer" - a double hammer, or double impact mechanism. Its design is based on the use of a double hammer, which, striking simultaneously from both sides, generates a balanced and powerful impact. As a result, the maximum torque of the wrench is released as soon as it starts working - with the first revolutions of the 6-blade rotor.
Maximum torque of 1700 Nm

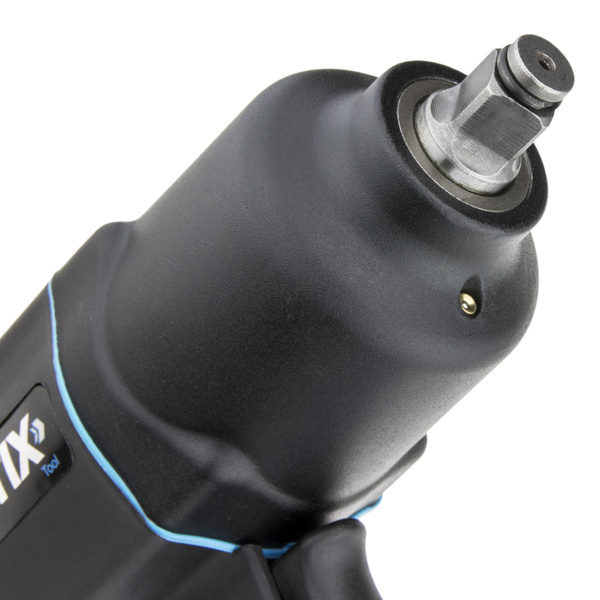

The wrench's maximum torque is 1,700 Nm, which makes it possible to quickly and reliably loosen even the most caked-on and corroded threaded connections. The tool holder in the form of a 1/2" square driver allows the use of a wide range of professional 1/2" impact sockets (an adapter for 1/4" sockets can also be used). The tool maintains efficiency and performance in the toughest operating conditions, while always ensuring precision and accuracy.

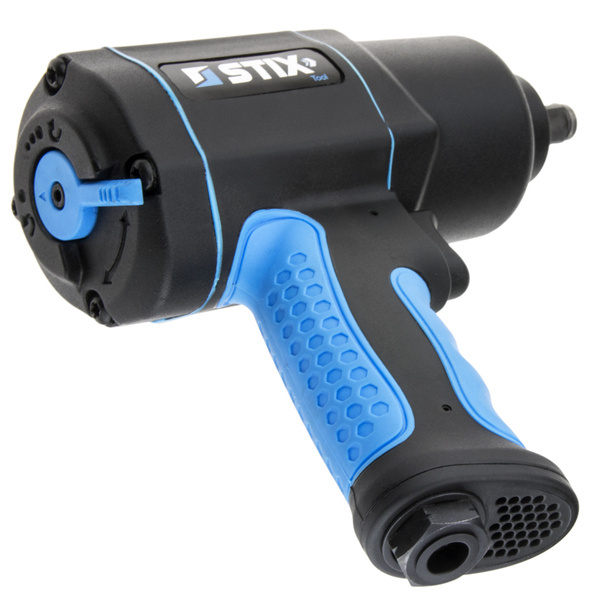

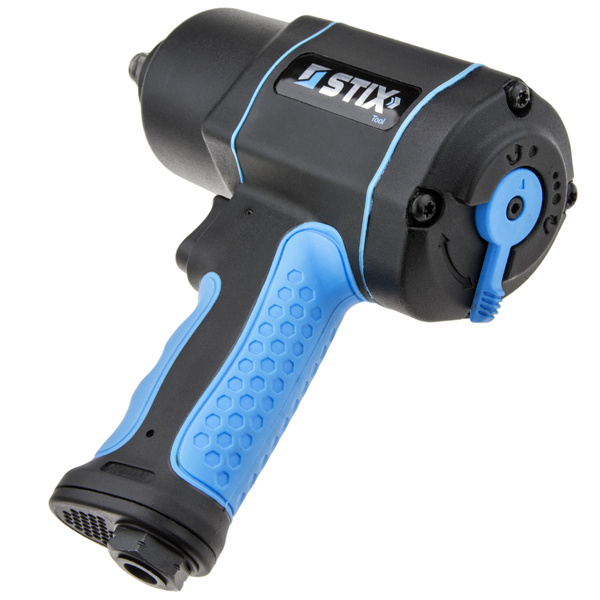

Torque adjustment
The STT-17 wrench offers a total of 4-stage torque level adjustment:
- 3-stage tightening torque adjustment,
- 1-stage loosening setting (loosening is done at full power).
Professional functionality
The STT-17 impact wrench was prepared for professionals looking for proven solutions, so the STT-17 has a number of advantages typical of high-end professional pneumatic tools, such as:
- stable operation of the mechanism,
- ability to carry heavy loads,
- repeatable torque value,
- self-lubrication.

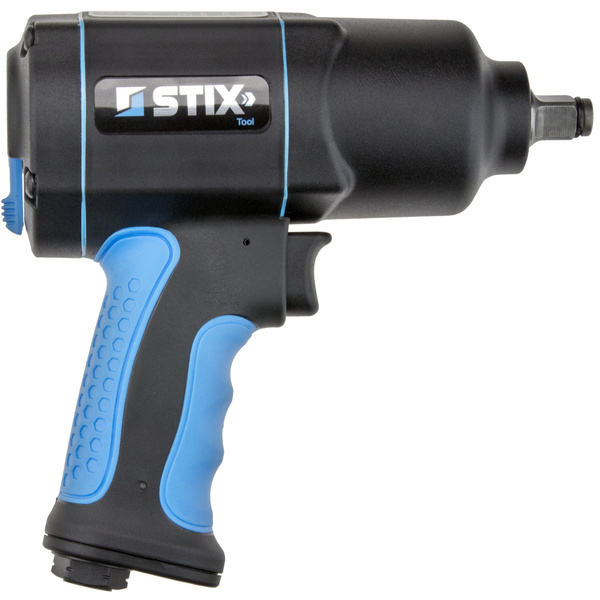

Composite construction
The mechanism of the STT-17 wrench is enclosed in a compact "pistol" housing, made of durable glass-fiber-reinforced composite, well able to withstand contact with lubricants and workshop "chemistry". The design of the wrench makes it possible to service and replace parts. The small weight of the wrench - only 2.1 kg - and perfect balance significantly facilitate free handling of the tool.
Comfort of use

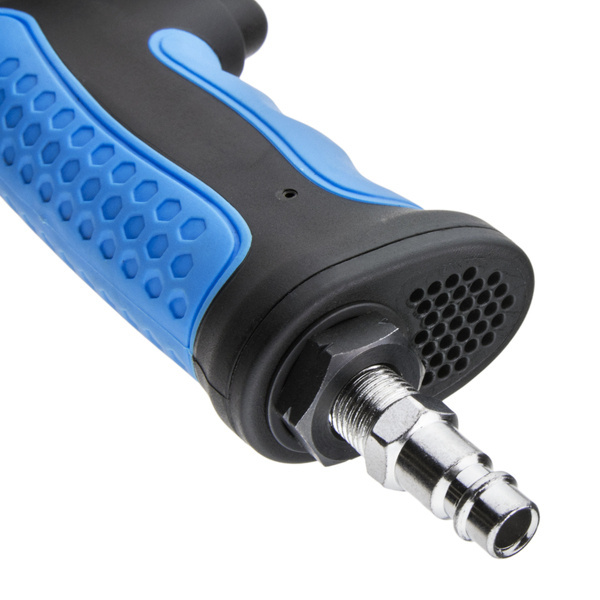

The ergonomic, properly shaped handle is covered with a soft non-slip material that is pleasant to the touch. It is a so-called soft grip, which helps dampen vibrations, insulates the hand well from low temperatures and provides a more secure grip on the tool. The trigger switch built into the handle sits perfectly under the finger. It moves with just the right, slightly perceptible resistance, so that starting and operation of the wrench remain under the user's control.

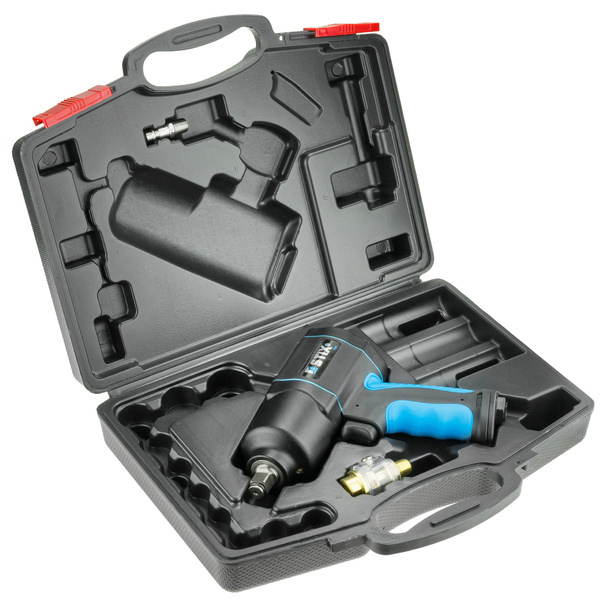

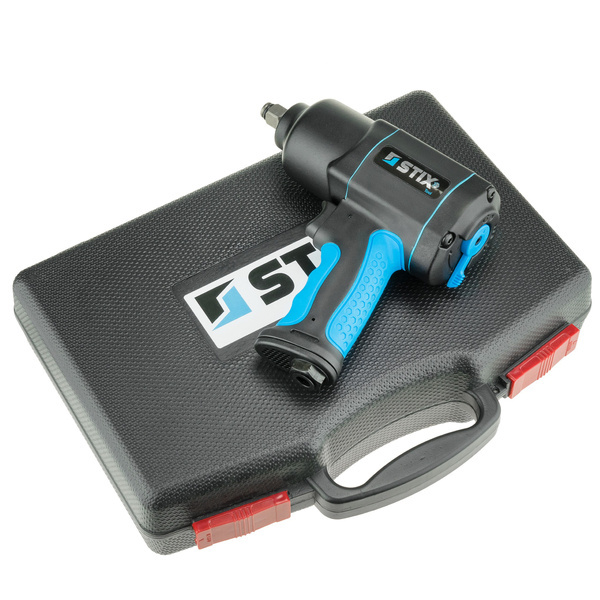

With carrying case and oiler

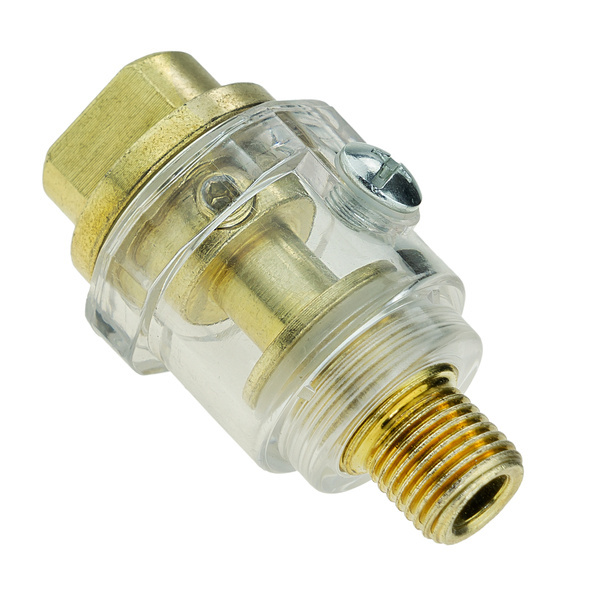

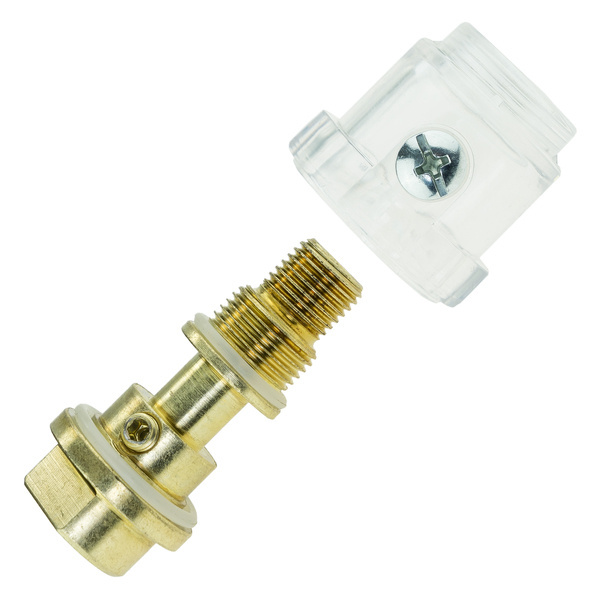

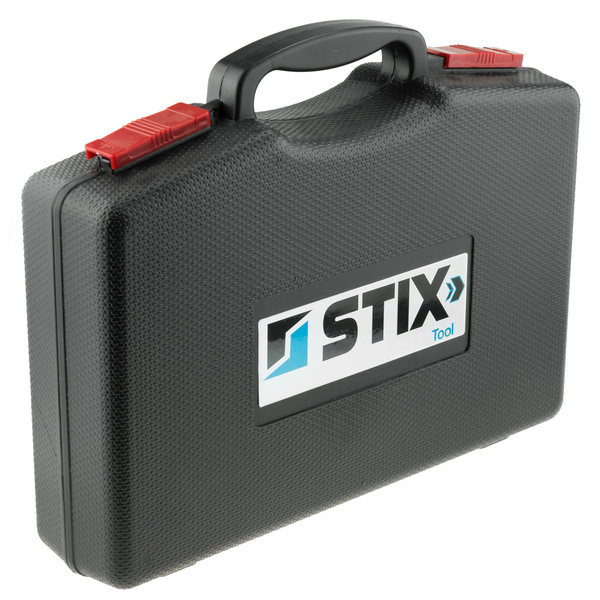

The wrench in the offered set comes with a carrying case and a pass-through oiler. Made of strong plastic, the suitcase makes it easy to transport and store the wrench. The suitcase has contoured slots for additional accessories, such as for various types of wrench sockets. The 1/4" through oiler allows you to put oil into the compressed air system to lubricate the mechanism of the impact wrench or any other pneumatic tool.

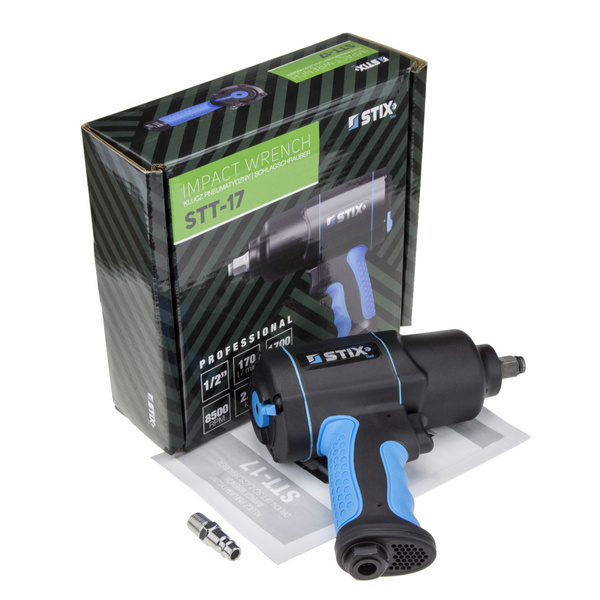

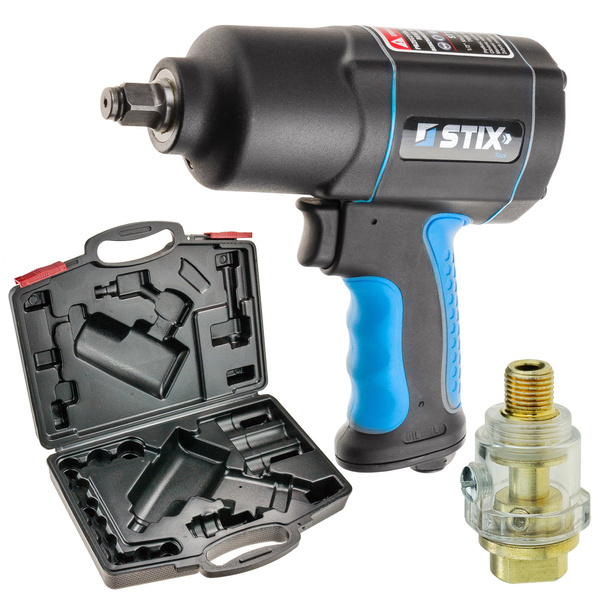

Components of the set
- STT-17 impact wrench,
- acase for the wrench and accessories,
- mini 1/4" pass-through oiler,
- quick coupler for quick connection of pneumatic supply line,
- manual (Polish, English and German language).
The STT-17 pneumatic wrench under the STIX Automotive Equipment brand belongs to the STIX Tool product line, which groups tools prepared for automotive workshops with a special focus on tire service.
Tools under the STIX Tool brand are designed for vulcanization workshops, but they will also prove useful in other industries and individual use. They are distinguished by their high quality and reliability. They are made of durable and robust materials to ensure long and trouble-free operation. In their favor is also the most favorable - among other products of this type on the market - quality-to-price ratio.
