Tech specs:
| Condition: | new |
| Tightening torque: | 4 Nm |
Valve / adapter for mounting TPMS pressure sensors

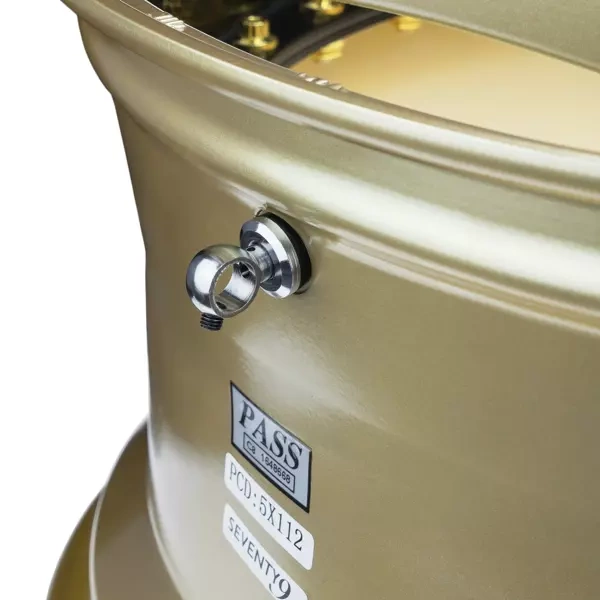

Twisted aluminum valve with an adapter that allows you to mount a TPMS pressure sensor with its valve on a rim, the profile of which prevents the sensor from being used on a standard valve. The valve / adapter fits all types of aluminum rims with a valve hole of 11.3 mm in diameter.

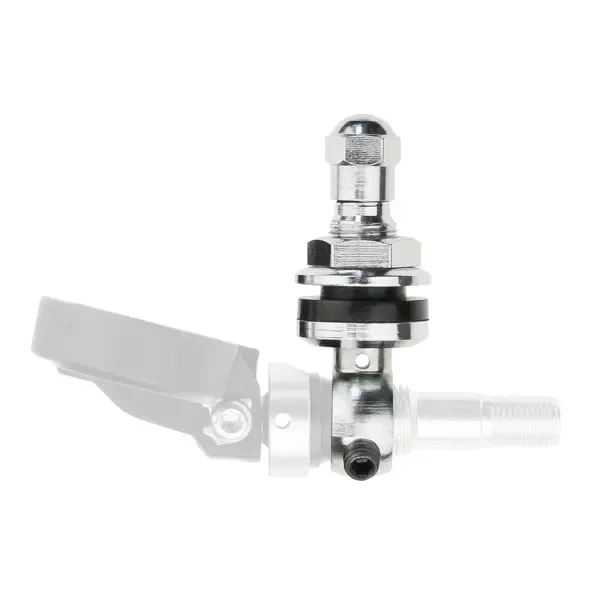

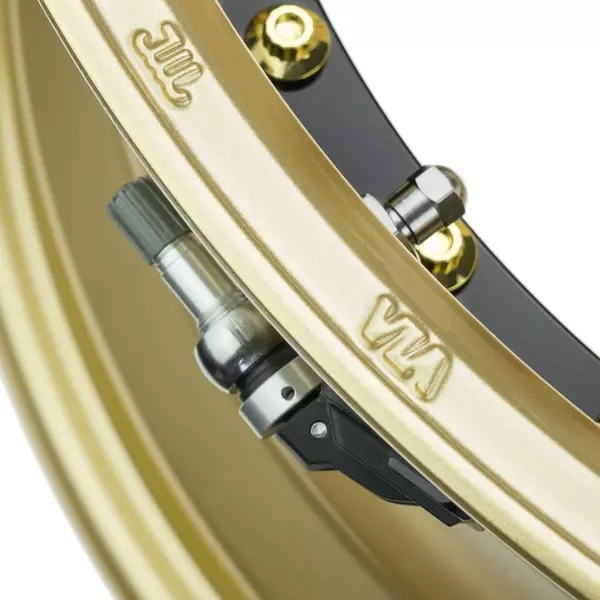

In order to install the sensor, you also need a valve corresponding to the sensor. Installation involves placing the valve stem with the sensor mounted on it (it can also be a sensor with an integrated valve) in the adapter clamp.

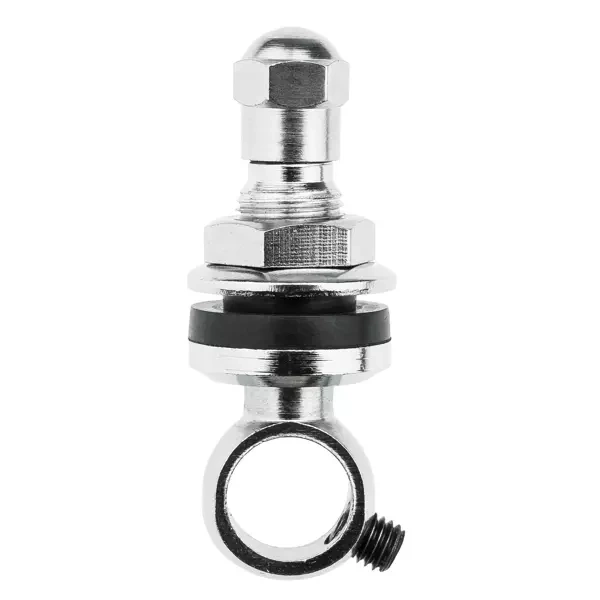

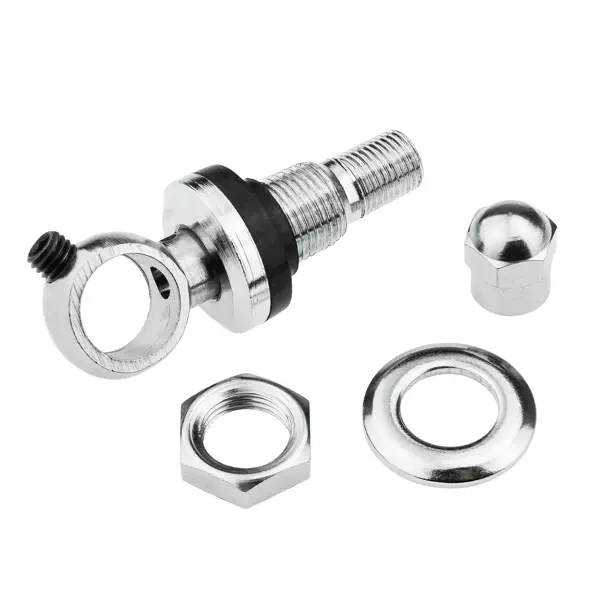

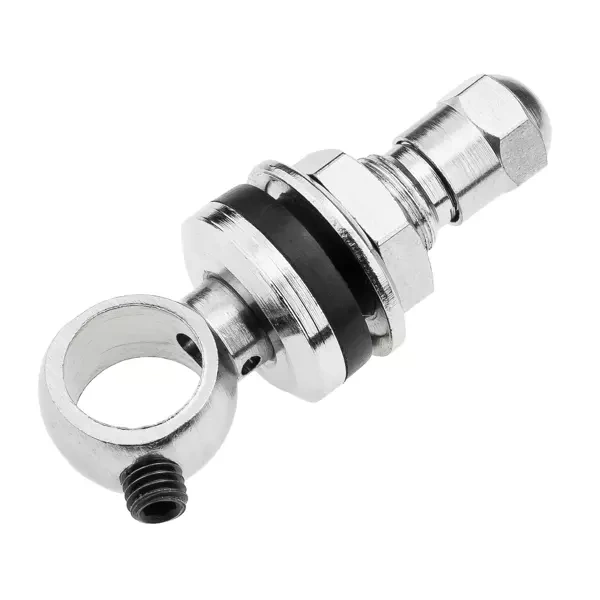

Components of the valve / adapter
- Metal valve stem with a clamp for the sensor,
- rubber gasket,
- metal nut securing the valve to the rim
- metal washer,
- metal cap with gasket,
- spring insert,
- sensor mounting screw.
Dimensions of the valve / adapter
- total height: 55 mm,
- height from the rim: 29 mm,
- for a hole in the rim with a diameter of 11.3 mm (+0.4 mm),
- inner diameter of the clamp (for fixing the valve with the sensor): 11.2 mm

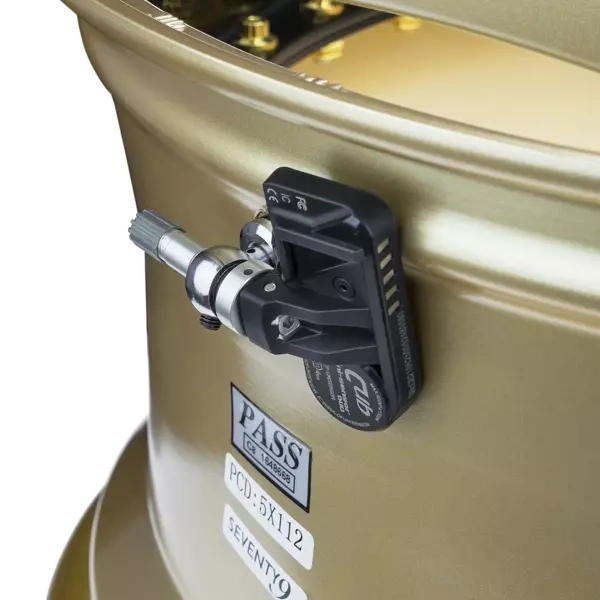

Note - the TPMS sensor visible in the photos (along with the valve) is not part of the set.
