Tech specs:
| Air connection: | 3/4" |
| Maximum inlet pressure: | 16bar |
| Capacity at 6 bars: | 3000 l/min |
| Filter: | 40 microns |
| Temperature range: | 0 - 60°C |
| Code: | OF-3/4-MIDI |
| Amount: | 1 pcs. |
| Condition: | new |
| Safety information: | no data |

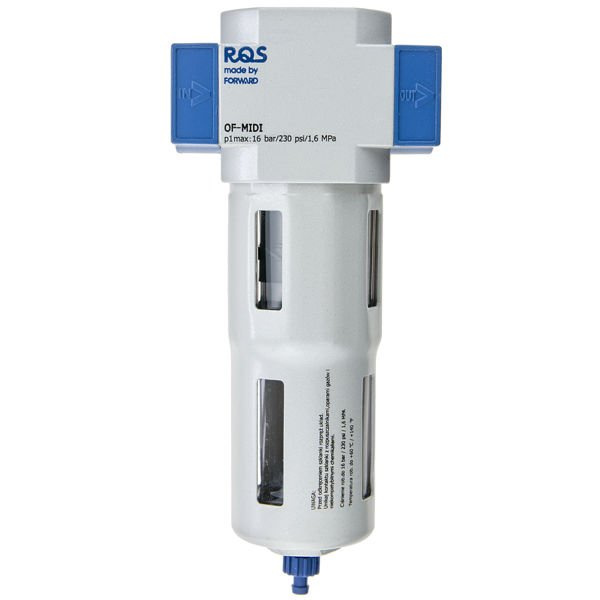

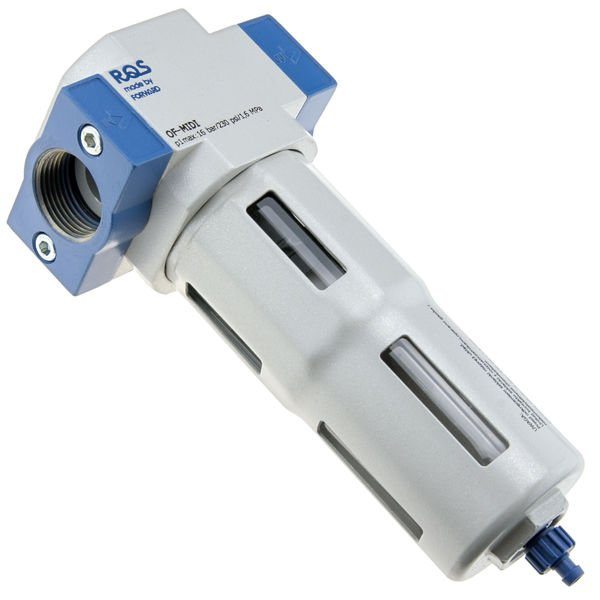

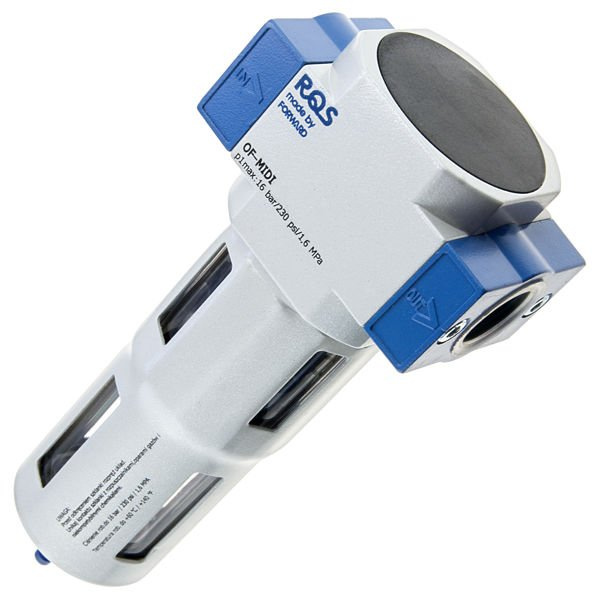

MIDI 3/4 air filter - RQS

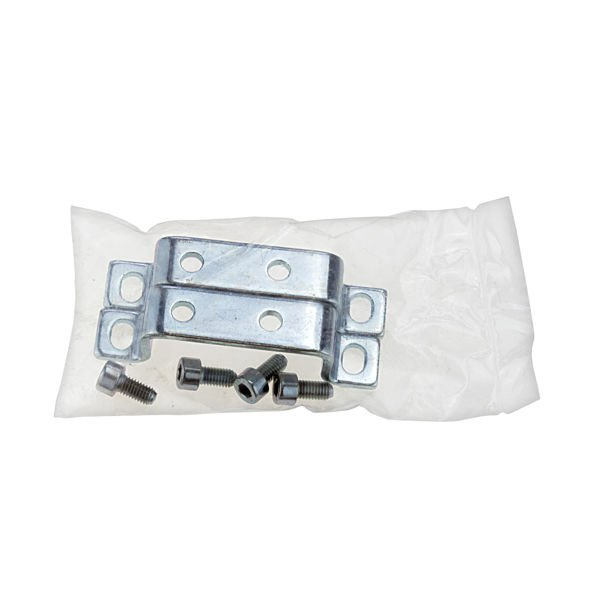

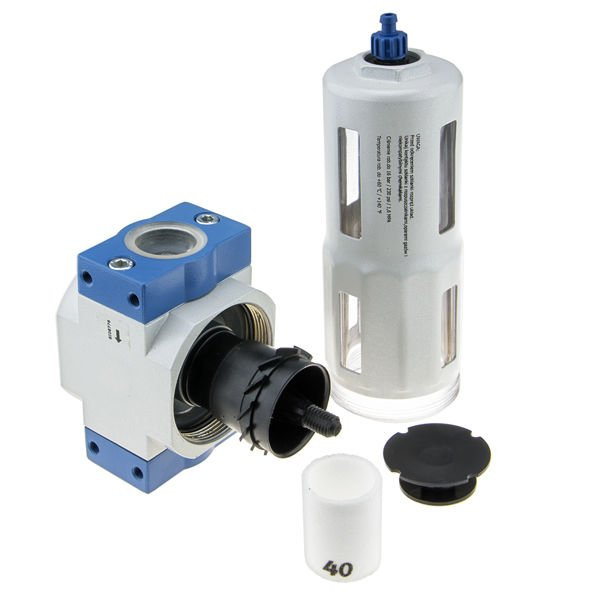

MIDI 3/4 filter - water separator designed for use in compressed air systems. Its task is to clean the air from oil, condensate and solid particles. Protection of compressed air from contaminants extends the life of pneumatic equipment and tools. The condensate is deposited in a screw-on container with a manual drain. When the container is full (to a level about 10 mm below the filter element), remove the condensate by opening the drain valve. A rear mounting bra cket with screws is supplied with the MIDI filter. The filter is equipped with a 40 μm filter element. Flow resistance chart of the MIDI 3/4 filter:
