Pillow air jack - snowman 3T GSP3 STIX / Galvanized

Pillow pneumatic jack "snowman" 3T - GSP3

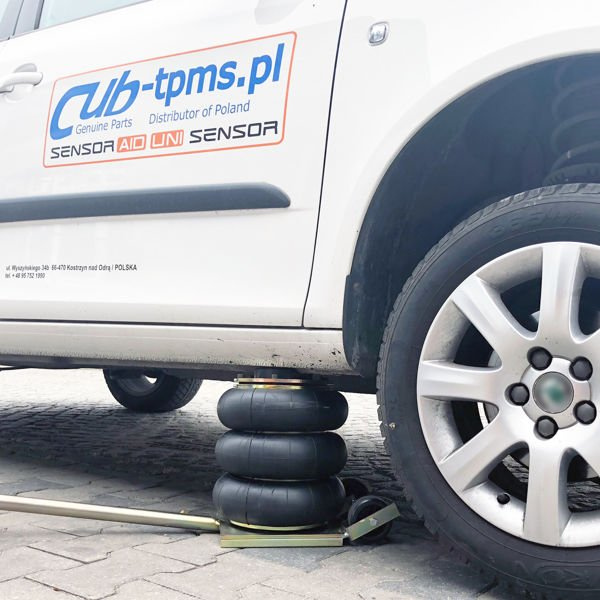

Pillow lifter GSP3 is designed for vulcanization shops and auto repair shops. The purpose of the lift is point lifting of a vehicle weighing up to 3 tons.

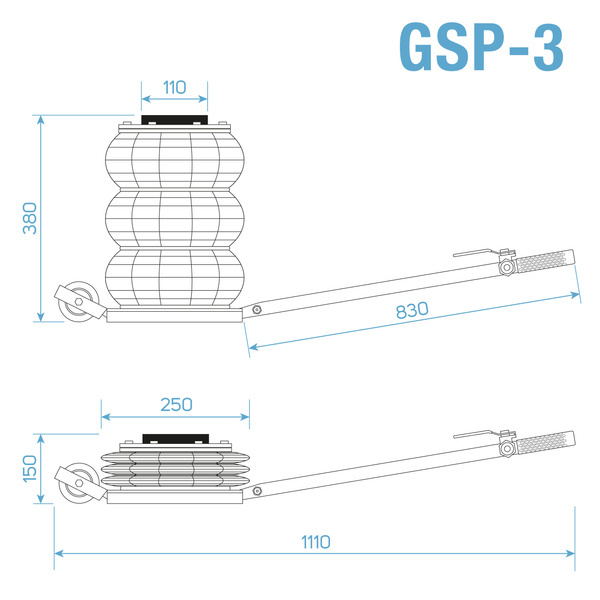

Themaximum lifting height is 38 cm. Height at rest - 15 cm. With the help of lifting pads, the lifting height can be increased by another 3 cm or 7.5 cm - depending on the selected pad (they are optional equipment).

The lift is powered by compressed air with an operating pressure of 6 to max 8 bar.

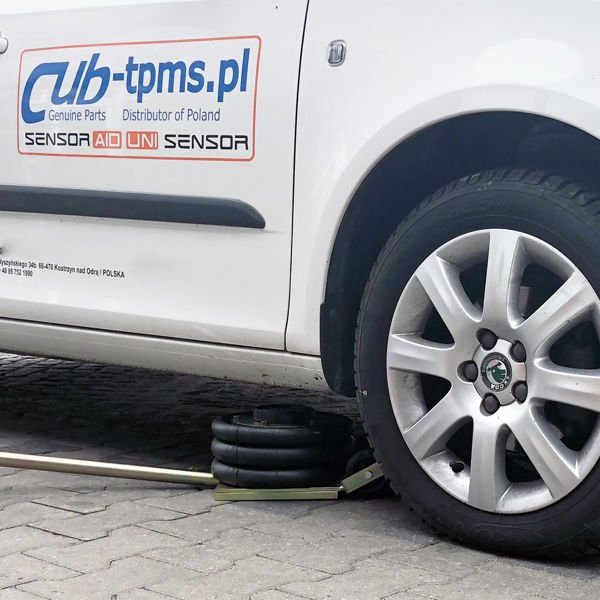

The simple and extremely robust design of the jack guarantees its reliable use and makes this product ideal for the car repair shop when there is a need to quickly lift the vehicle to remove the wheel. The jack is distinguished by a number of advantages, confirming its high quality and functionality:

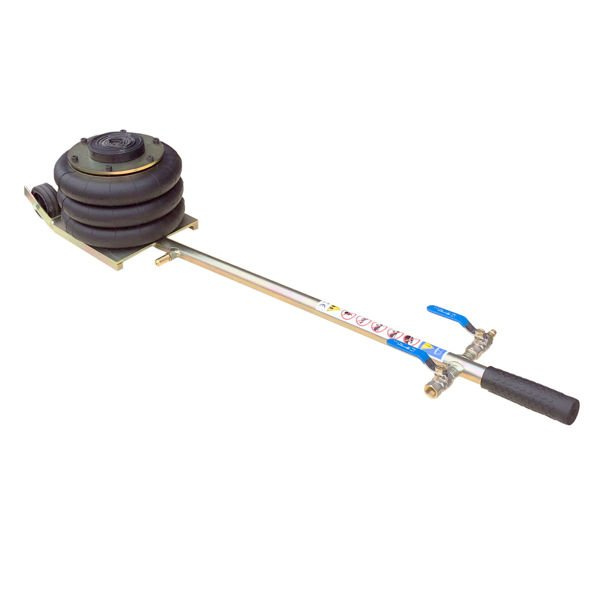

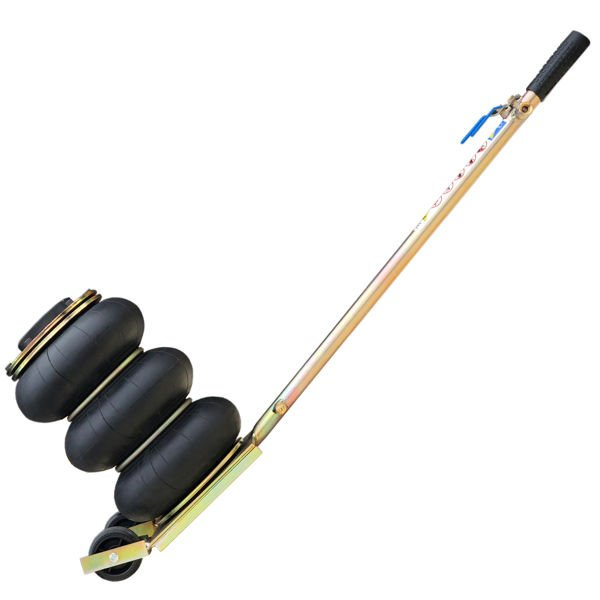

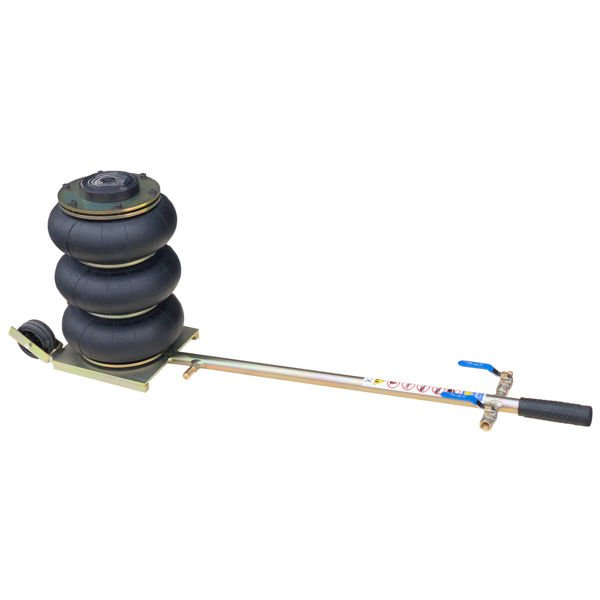

• welded construction made of thick-walled steel sheet,
• anti-corrosion protection - zinc coating,
• rubber bell ows made of durable rubber (3-level),
• metal telescope inside the bellows, stabilizing the lifter and preventing swaying of the lifted vehicle,
• 83 cm long handle welded to the square base,
• Non-slip handle made of corrugated rubber,
• Ø50 mm wheels, making it easy to transport the jack and slide it under the chassis,

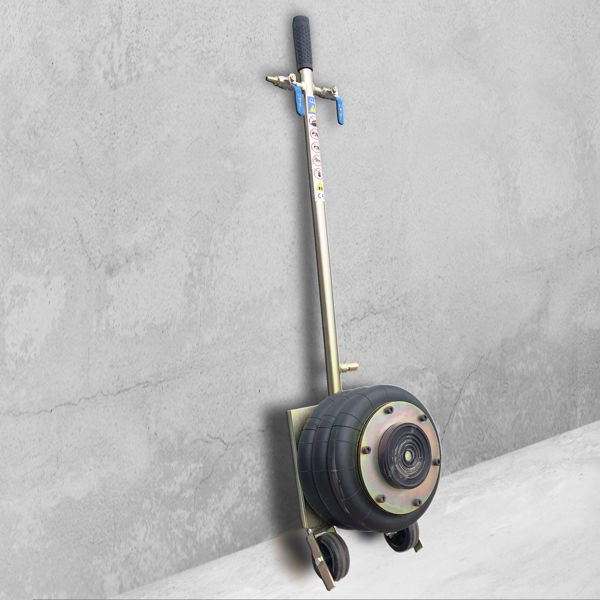

• possibility to support the jack vertically thanks to extended flat bars at the wheels,

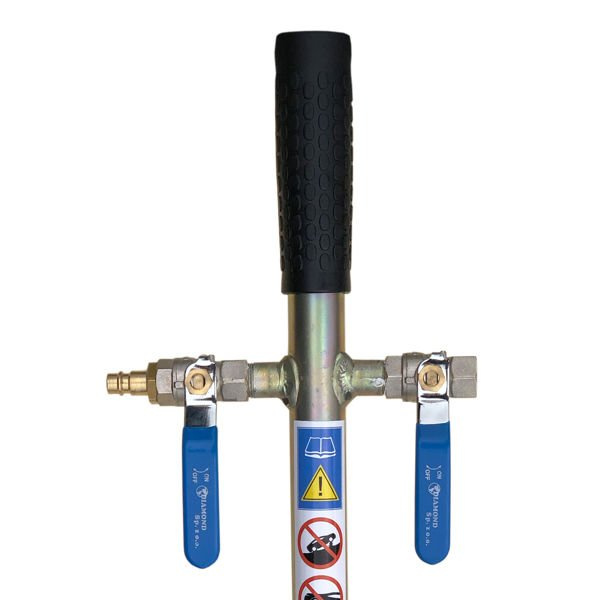

• 3/8"ball valves - inlet and outlet with convenient levers,

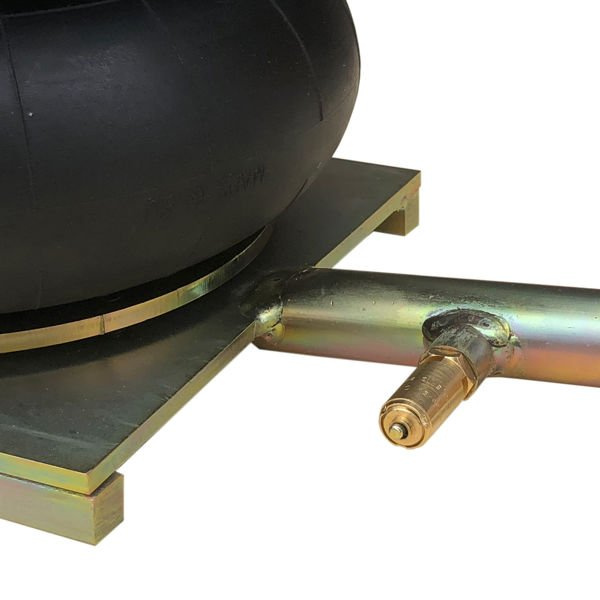

• safety valve, preventing bursting of the cushion in case of exceeding the allowed pressure of compressed air (above 8.3 bar),

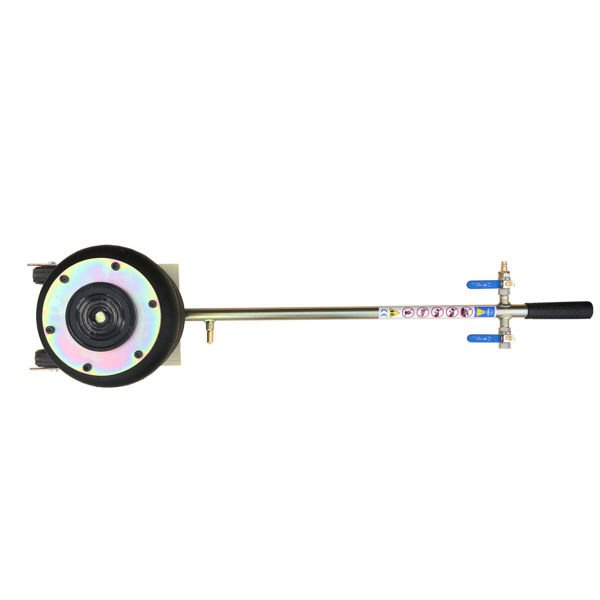

• rubber foot screwed to the elevator plate and protecting the lifted element from slipping,
• optional equipment: screw-on lifting pads of 3 or 7.5 cm.

The design and manufacture of the elevator ensures that the product complies with health and safety rules, the elevator has an EC declaration of conformity and CE mark.
