Schrader TPMS-10 Gen Alpha Pressure Sensor Vent Valve

Valve / Repair Kit for Schrader Gen Alpha Pressure Sensor - TPMS-10

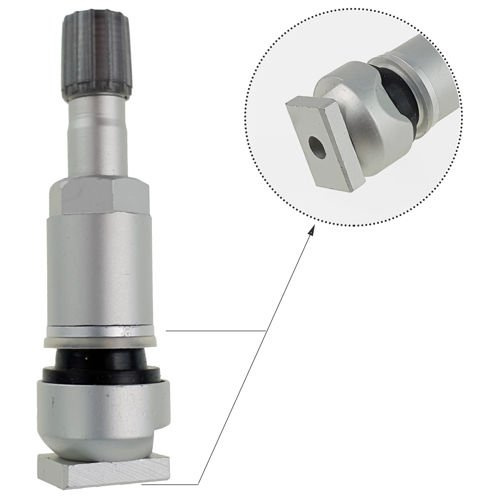

Bolt-on aluminum valve for Schrader Gen Alpha type sensors, perfect as a replacement for original valves. It fits all types of aluminum rims with 11.3mm valve hole.

The valve consists of the following components:
- aluminum body
- rubber gasket
- two plastic washers
- plastic cap
- spring insert
- contoured valve stem for mounting

Dimensions:
- height: 56mm
- rim hole: 11.3mm + 0.4mm
- height from the rim: 38mm
- valve head diameter: 17mm

Valve used with Schrader Gen Alpha type sensors found in cars such as:

CHRYSLER: 300 (01/2009-11/2017), 300C (06/2006-05/2010), SEBRING (06/2006-12/2015), VOYAGER (07/2007-12/2010)
DODGE: AVENGER (2006-2007), CALIBER (01/2006-12/2011), CHALLENGER (01/2008-06/2018), CHARGER (01/2009-06/2018), DAKOTA (2009-2014), JOURNEY (01/2009-12/2010), NITRO (08/2006-12/2011)
FIAT: FREEMONT (01/2011-06/2018)
JEEP: COMMANDER (01/2006-12/2010), CHEROKEE (2007-2013), GRAND CHEROKEE (06/2006-12/2010), WRANGLER (07/2007-08/2010)
LANCIA: THEMA (01/2011-06/2018), VOYAGER (07/2007-12/2010), VOYAGER (01/2011-12/2015)
MAYBACH S 500 (01/2015-06/2018)
MERCEDES-BENZ AMG (2010-2014), CL-CLASS (06/2009-06/2018), CLC-CLASS (06/2008-12/2011), CLK (04/2007-09/2009), CLS (07/2009-06/2018), E-CLASS (W212/C207) (07/2009-08/2016), G-CLASS (04/2007-06/2018), GL/GLS-CLASS (06/2009-06/2018), ML-CLASS (08/2009-06/2018), R-CLASS (08/2009-11/2017), S-CLASS (06/2009-06/2018), SL (01/2012-06/2018), SLC (01/2016-06/2018), SLK (04/2007-12/2015), SLS (01/2010-06/2017), SPRINTER (11/2011-06/2018)
SMART: FORTWO (01/2007-02/2014)
VOLKSWAGEN: CRAFTER (07/2014-03/2017)
