Schrader TPMS-04 GEN 4 Snap-in Pressure Sensor Vent Valve

Valve - repair kit TPMS-04
for Schrader Snap-In GEN 4pressure sensors

TPMS-04 is a rubber valve for Schrader Snap-In GEN 4, Ez-sensor type TPMS sensors. TPMS-04 is perfect as a replacement for the original valves in factory-installed TPMS systems. It fits all types of alloy wheels with an 11.3mm diameter hole for valve mounting.

TPMS-04 rubber valves are characterized by very good resistance to centrifugal forces. They maintain high tightness and ensure maintenance of proper pressure in the wheel.

TPMS-04 valves are built from materials with specially selected quality parameters. This ensures their long and trouble-free operation regardless of weather and terrain conditions while driving.

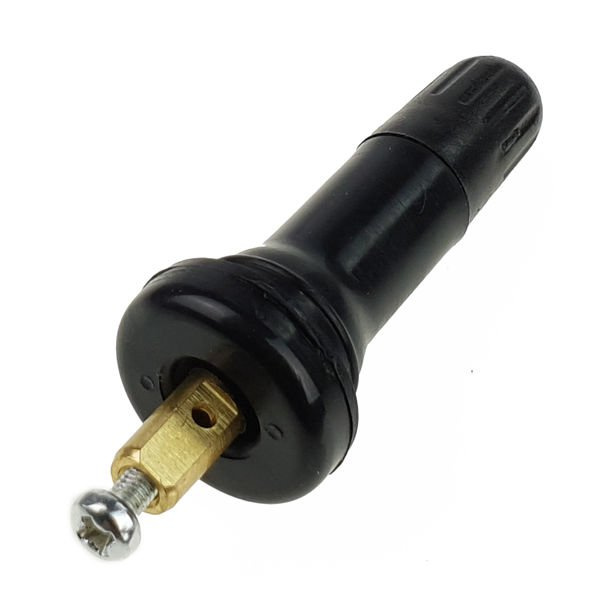

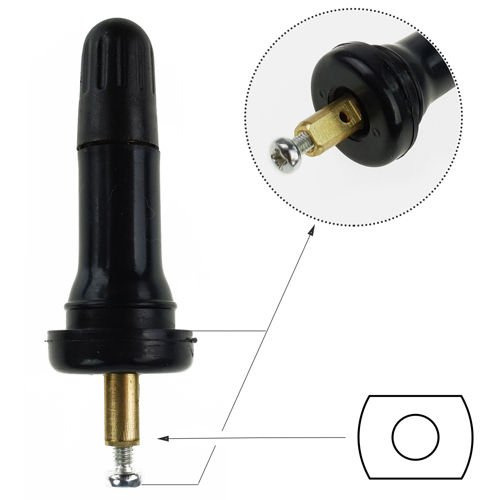

TPMS-04 valve is composed of the following parts:

• rubber body,
• plastic cap,
• spring insert,
• molded valve stem,
• sensor mounting screw*.

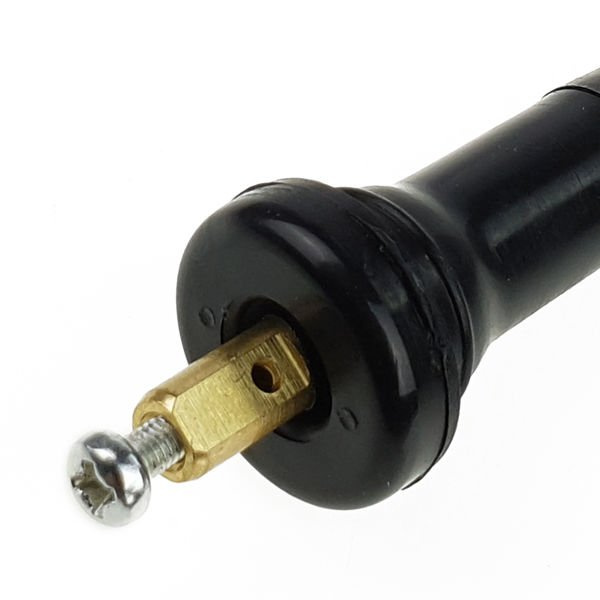

*Note- TPMS-04 valve does not have a factory-made thread for the mounting screw - the mounting stem is made of brass and the threading is done when the screw is first screwed in.

Application of the TPMS-04 valve

TPMS-04 valve is designed for use with Schrader Snap-In GEN 4 and Ez-sensor type TPMS pressure sensors found in cars:

• ALFA ROMEO: GIULIETTA (01/2014-06/2018), MITO (08/2013-06/2018) BUICK PARK AVENUE (1997-2005)
• CADILLAC: CTS (01/2008-06/2018), ESCALADE (01/2012-06/2018)
• CHEVROLET: AVEO (11/2010-06/2018), CAPTIVA (06/2006-06/2018), COBALT (02/2013-12/2015), CRUZE (06/2014-06/2018), EXPRESS (07/2002-06/2018), MALIBU (01/2012-06/2018), MATIZ (06/2014-06/2018), ORLANDO (09/2010-06/2018), SPARK (07/2009-06/2018), SUBURBAN (03/2006-07/2008), TRAX (01/2013-06/2018)
• CHRYSLER: TOWN-COUNTRY (01/2011-12/2016), VIPER (12/2012-06/2018), VOYAGER (01/2011-12/2016)
• CITROEN: BERLINGO (01/2009-10/2013), C4 (08/2008-09/2013), DS4 (12/2010-12/2013), DS5 (01/2011-12/2013), JUMPY/DISPATCH (01/2011-09/2014), NEMO (10/2007-12/2015)
• DAEWOO: GENTRA (08/2013-12/2016), NEXIA (06/2014-12/2016)
• DODGE: DURANGO (01/2011-06/2018), GRAND CARAVAN (01/2011-12/2016), JOURNEY (01/2011-06/2018), RAM SERIES (2010-2013), VIPER (12/2012-06/2015)
• FIAT: 500L (05/2007-06/2018), DOBLO (12/2012-06/2018), LINEA (03/2007-12/2015), QUBO (10/2007-06/2018), STRADA (01/2012-06/2018) FORD: EXPLORER (01/2013-12/2017), NAVIGATOR (01/2011-12/2014), TRANSIT (01/2014-11/2017)
• HUMMER: H2 (04/2002-12/2008), H3 (03/2005-01/2012)
• JEEP: COMPASS (01/2011-06/2017), GRAND CHEROKEE (01/2011-12/2015), LIBERTY (2010-2014), PATRIOT (12/2006-03/2017), WRANGLER (09/2010-06/2018)
• MAZDA: BT-50 (05/2011-06/2018)
• OPEL: ADAM (01/2012-06/2014), ADAM (07/2014-06/2018), ANTARA (08/2006-12/2010), ANTARA (01/2011-05/2014), ANTARA (06/2014-06/2018), COMBO D (03/2011-06/2018), CORSA E (11/2014-06/2018), MERIVA B (07/2014-06/2017), MOKKA (01/2012-09/2016), MOKKA X (10/2016-06/2018)
• PEUGEOT 307 (03/2007-12/2007), 308 CC (09/2009-08/2013), 308 SW (04/2007-08/2013), 3008 (11/2008-08/2013), 5008 (09/2009-08/2013), EXPERT (01/2011-09/2014), PARTNER (2008-2013), RCZ (03/2010-10/2013)
• SAAB: 9-4X (04/2011-01/2014) SSANGYONG ACTYON (03/2014-06/2018), KORANDO C (08/2013-06/2018), REXTON (05/2014-10/2017), RODIUS (05/2014-06/2018), TOYOTA PROACE (01/2013-05/2014)
