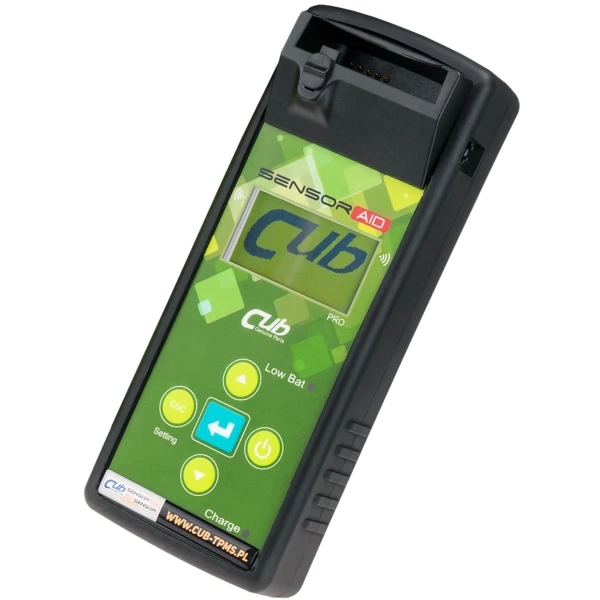

CUB TPMS pressure sensor programmer Sensor AID Pro 3.0

Sensor AID Pro 3.0 is the entry-level model of CUB's TPMS programmer. The device allows you to operate direct pressure sensors of the TPMS (tire pressure monitoring system). The main functions of this instrument are:

• sensor diagnosis,
• sensor cloning,
• Cub Uni-Sensor programming.

Using the programmer, it is possible to diagnose and activate most TPMS pressure sensors regardless of their manufacturer and sensor condition. The device can also be used to program universal CUB Uni-Sensor sensors - as clones or sensors with new ID numbers.

The Sensor AID Pro 3.0 programmer scans the sensors using a wireless antenna mounted on the sides. It works with the same frequencies as the sensors, namely 433 MHz or 315 MHz. The base of supported vehicles includes cars manufactured for both the European and American markets.

The manufacturer provides regular free and unlimited updates to the list of supported cars and to increase the functionality of the device. Updates are made easily using an update application installed on the computer - just connect the programmer to the computer with a USB cable and run the program.

Sensor AID Pro 3.0 has an extensive settings menu, allowing us to customize the displayed information to suit our own preferences and service needs for a given car model. We can select and set the following options:

• menu language (including Polish language),
• region of production of the car (Europe / USA),
• number of wheels,
• temperature and pressure units,
• ID number format (DEC / HEX),
• display contrast,
• automatic shutdown of the device,
• audible signal (buzzer).

The device is equipped with a powerful rechargeable battery, which makes the user independent of external power sources for a long time.

Overview of the functions of the Sensor AID Pro 3.0 device

1 Sensor diagnosis

The programmer scans the sensor to obtain information such as sensor ID number, current pressure, sensor frequency, tire temperature and battery status (note - not all original sensors show battery status and tire temperature)

2 Automatic copying of the new sensor

Copying the sensor ID number automatically.

3. manual copying of the new sensor

Copying the ID number in a manual manner. Note - the device also has the ability to duplicate the original sensors by manually entering the ID number located on the sensor housing.

4 Programming a new sensor

During this process, the ID number copying procedure is bypassed - after selecting the correct car model, the programmer sends the corresponding ID number to the empty Uni-Sensor.

5. wireless sensor modification - copying the ID number of the original sensor

This function allows you to copy the ID number of the original sensor to the Sensor AID device and send it to the Uni-Sensor.

6. wireless sensor modification - modifying the ID number of a newly created sensor.

The function allows modification of ID numbers in Uni-Sensor sensors. After scanning the sensor, we can freely modify the ID number to update it.

7. wireless sensor modification with respect to the right / left wheel.

The function allows you to change the position of the sensor relative to the right or left wheel.

8. data storage on the computer

Save sensor ID related data on the computer - allows you to save the scanned sensor ID numbers on the computer (you need to enable the option of scanning 4 wheels beforehand). Saving data related to sensor ID numbers is supported by the application, which saves the data to text file format (*.txt).

9 Using OBDII module to read and write ID numbers

Thanks to the OBDII module, it is possible to hook up the device to the computer in the car. The device allows you to scan all the sensors that are in the vehicle, and then read or write the ID numbers of the sensors to the ECU.
