Validated wheel inflation gun Wonder Eurodain 2015 - Michelin

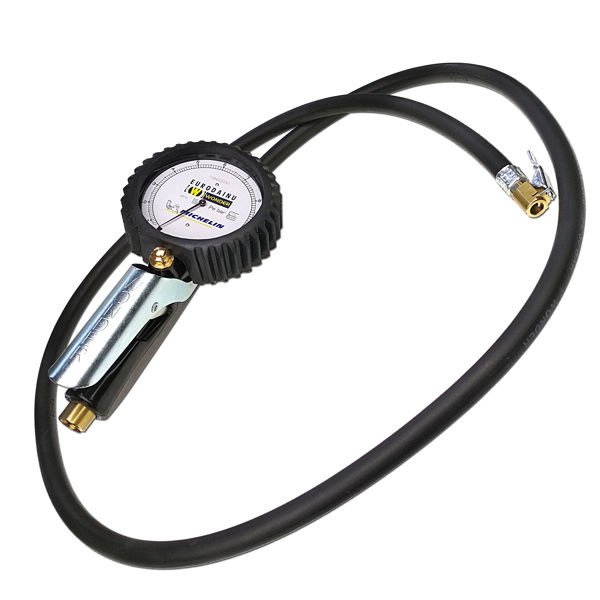

Wheel inflation gun with pressure gauge
Michelin Wonder Eurodainu 2015

A high-quality tool designed, manufactured and certified in Italy by Wonder, a leader in the supply of OEM valves for the automotive industry. The Eurodainu 2015 model is a continuation of the acclaimed 1991 model, whose continuously improved design guarantees reliability and precision. The class of the device is confirmed by the logo of the Michelin concern on the pressure gauge dial.

• The improved pressure gauge mechanism guarantees the highest level of precision and repeatability of measurement. The accuracy of the reading is 0.1 bar, and the pressure measurement is within the range of 0.7 - 11 bar (max. permissible pressure - 15 bar).

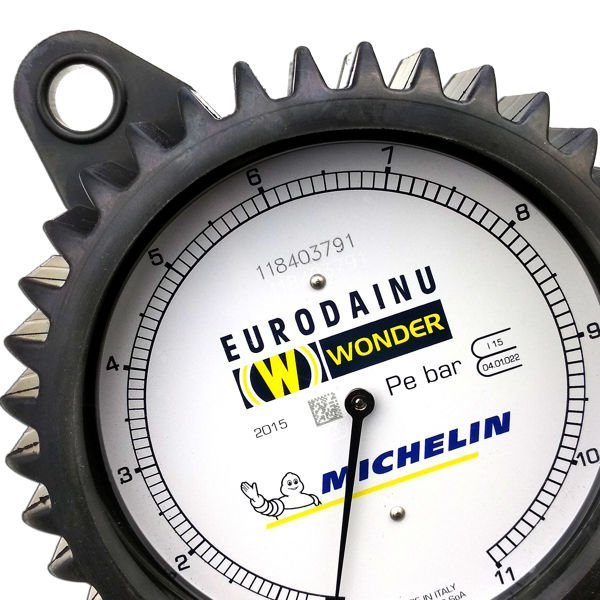

• Large, easy-to-read dial located behind a protective and sealed glass (dial diameter - 8 cm). Scaled only in bars - to minimize the risk of confusion when reading.

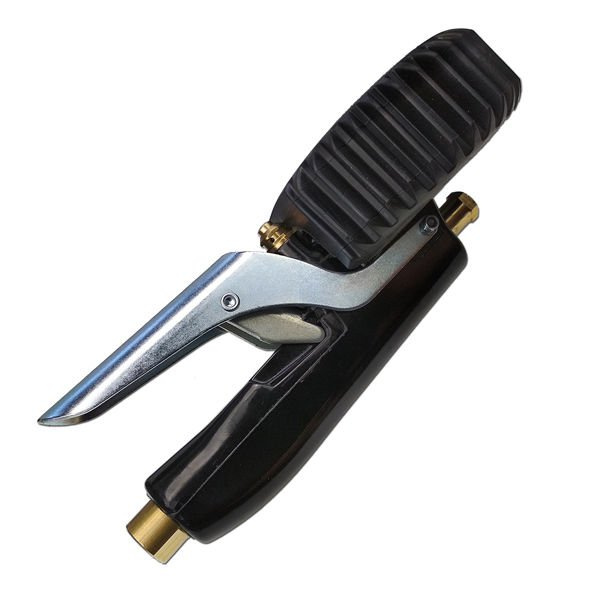

• Ergonomic design - the properly contoured body makes the tool fit perfectly in the hand, and the solid metal lever provides a comfortable grip and ease of use.


• Trigger button - located below the dial, easily operated with the thumb, for precise adjustment by lowering the pressure.


• Anti-Shock Protector system ensures maximum protection of the pressure gauge and maintains measurement accuracy even in the event of shocks and drops.

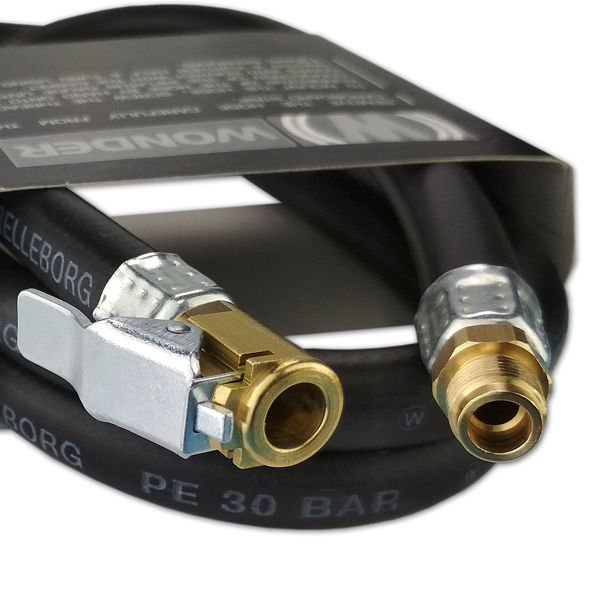

• Itcomes with a 150 cm longhigh-pressure PE hose (for a maximum pressure of 30 bar). The hose is terminated with a sturdy compression end with a strong spring to prevent accidental jumping of the hose.

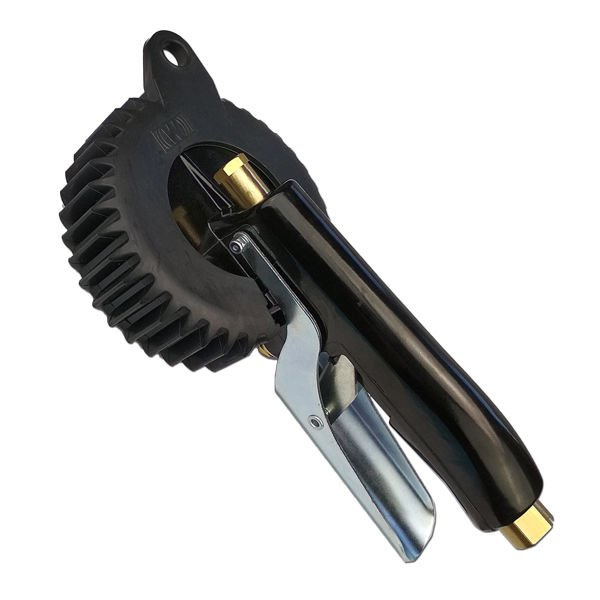

• The gun'shanging bracket has been placed asymmetrically to make it easier to hang the device, for example, on the column of an assembler (hole diameter - 10 mm).


• Nitrogen pumping - with the device you can pump the wheels with nitrogen mixture.

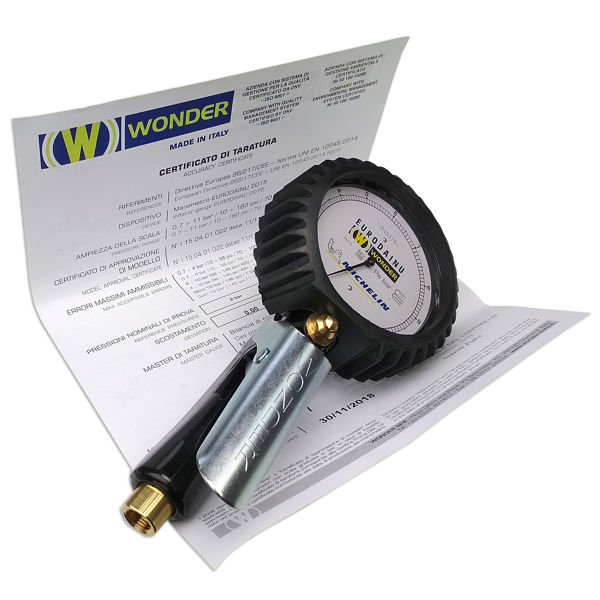

• Calibrationcertificate (so-called calibration certificate) attached to each unit. This document confirms the factory calibration in accordance with EN 12645:2014.

• The device meets the requirements for primary legalization, according to the Ordinance of the Minister of Entrepreneurship and Technology dated March 22, 2019 on legal metrological control of measuring instruments (Journal of Laws dated 17.04.2019 Item 759). This is confirmed by the appropriate graphic-digital marking required by the above-mentioned regulation. It is permanently affixed to the housing of the pressure gauge under the protective rubber. The digital marking indicates the year of legalization and determines its validity for the next two years. The marking replaces a separate document in the form of a GUM (Central Office of Measures) legalization certificate.
