Air Pneumatic Balloon Jack - 4T AP-4000 STIX / Graphite
-15%

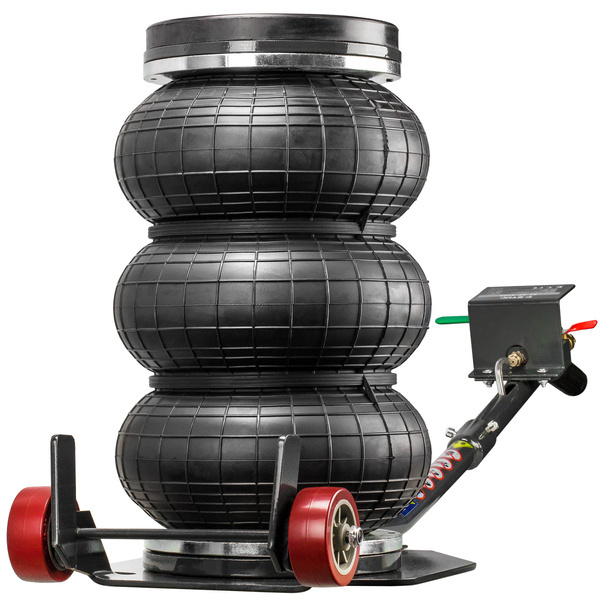

Pneumatic balloon jack AP-4000 4T

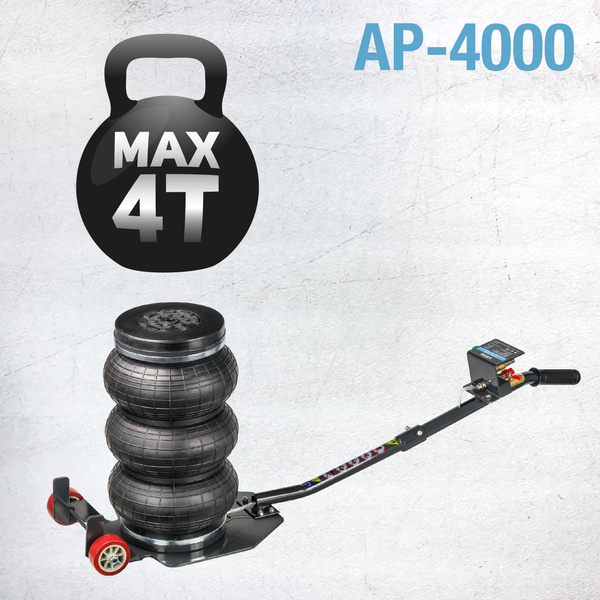

4 Ton Lifting Capacity
The AP-4000 pneumatic air bag jack is a popular option for workshops and tire service centers. Designed for efficiency, it’s the perfect tool for quickly lifting vehicles for wheel removal. This jack is capable of lifting a point load of up to 4 tons.
Maximum Height: 40 cm

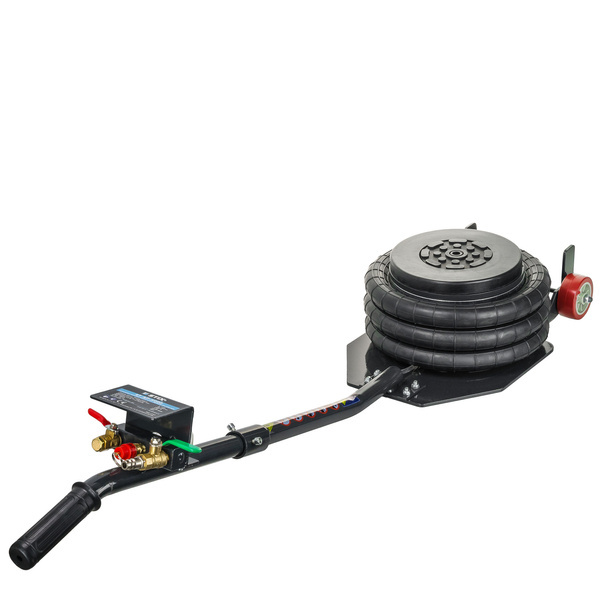

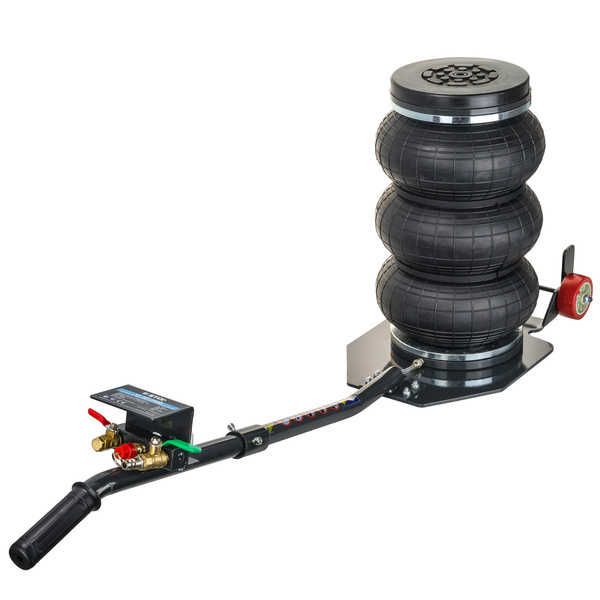

Once inflated, the AP-4000 reaches a maximum height of 40 cm, while its resting height is just 15 cm, allowing it to easily slide under the chassis of most standard passenger vehicles.
Additional Protective Cover

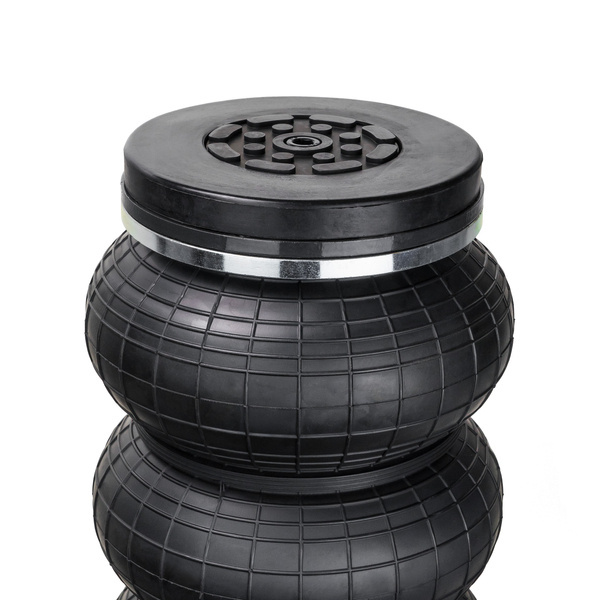

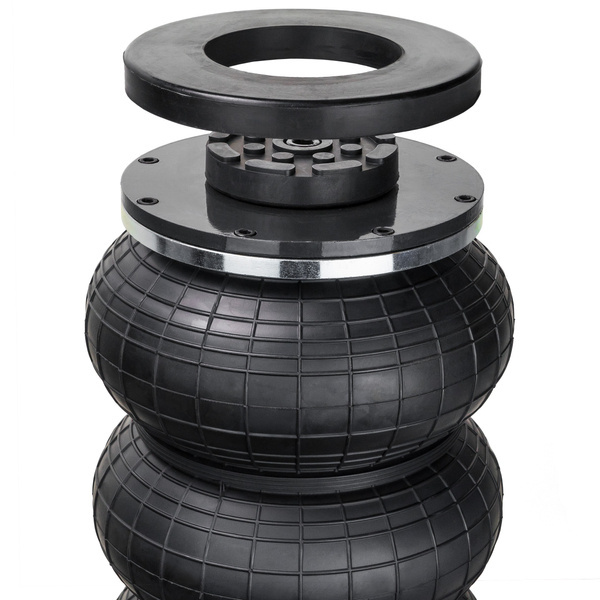

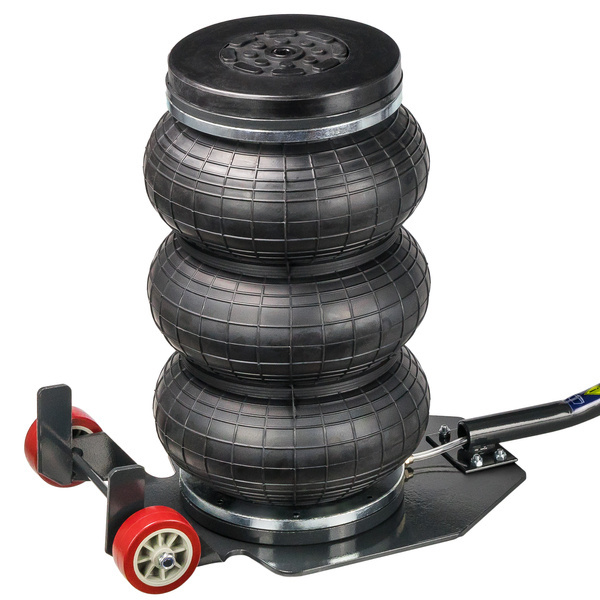

In addition to the standard, screwed-on rubber support foot for bearing the load, the jack set includes an additional rubber pad. The pad, with a diameter of 180 mm, completely covers the surface of the top plate. This effectively protects the lifted vehicle from scratches that may occur when manipulating the jack under the lifting point, as well as in the event of the vehicle slipping off the standard support foot.
Pneumatic Operation
This jack operates on compressed air, with a recommended working pressure of approximately 6 bar (maximum allowable pressure is 10 bar). It is equipped with a safety valve to prevent the air bag from bursting if the pressure exceeds the limit.
Easy to Use
Operating the jack is straightforward, with two 3/8” ball valves featuring convenient levers. Color-coded indicators make it easy to identify which lever raises (green for air supply) and which lowers (red for discharge).
Durable Construction
The robust steel design of the AP-4000 ensures long-lasting and reliable use. It complies with safety regulations and carries a CE declaration. Key construction features include:
- A metal telescope within the rubber bellows for stability during lifting

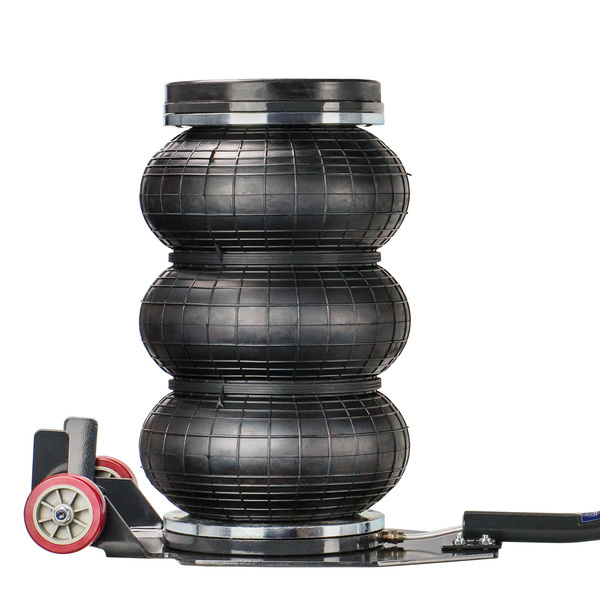

- 3-level bellows made from durable rubber
- Corrosion protection through powder coating
- Ø60 mm wheels made from tough materials for easy maneuverability
- A detachable handle, 71 cm long, for transport or storage convenience
- A non-slip grip with a textured rubber surface

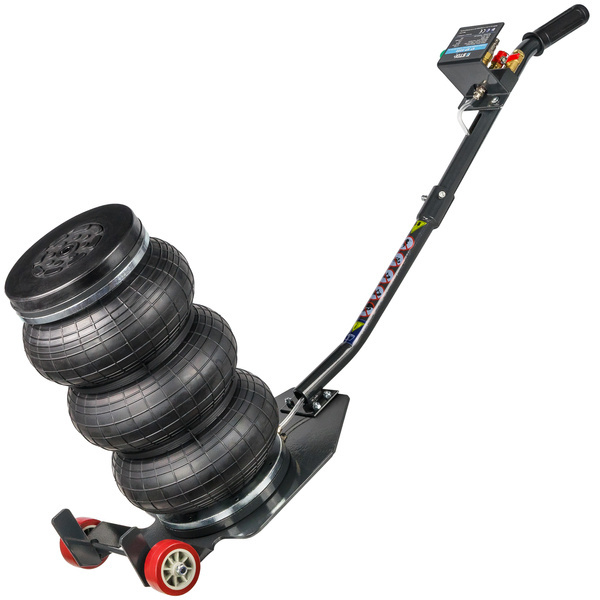

- The ability to stand vertically without additional support
Upgrade your workshop with the AP-4000 Pneumatic Air Bag Jack—engineered for performance and reliability!
